[Technical tips] EBOX Mini PC Linux Debian 11 Installation

We would like to show how to use EBOX to install the Debian 11.

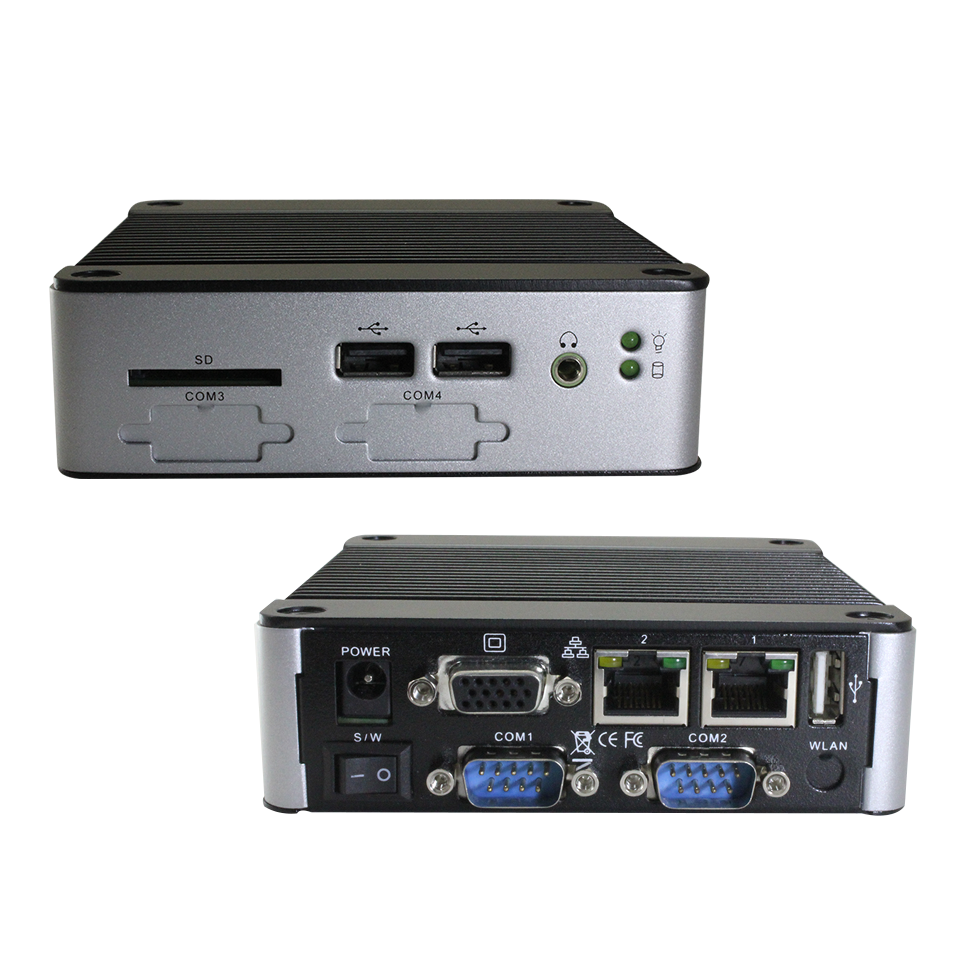

Debian 11 installation is workable on EB-58, EB-336x, DIN PC-336x and 335xDX3 Series.

Preparation:

• Windows PC x 1 pcs (Windows 10 or higher)
• USB drive x 1 pcs (1GB at least)
• EBOX Mini PC x 1 pc
• EBOX Mini PC x 1 pcs
• Download 32-bit Image Debian-11.4.0-i386-netinst.iso for EBOX Vortex86DX3 Series
  (Download from https://get.debian.org/images/archive/11.4.0/i386/iso-cd/)
• Tool Rufus
  (Download from https://rufus.ie/en/)

---

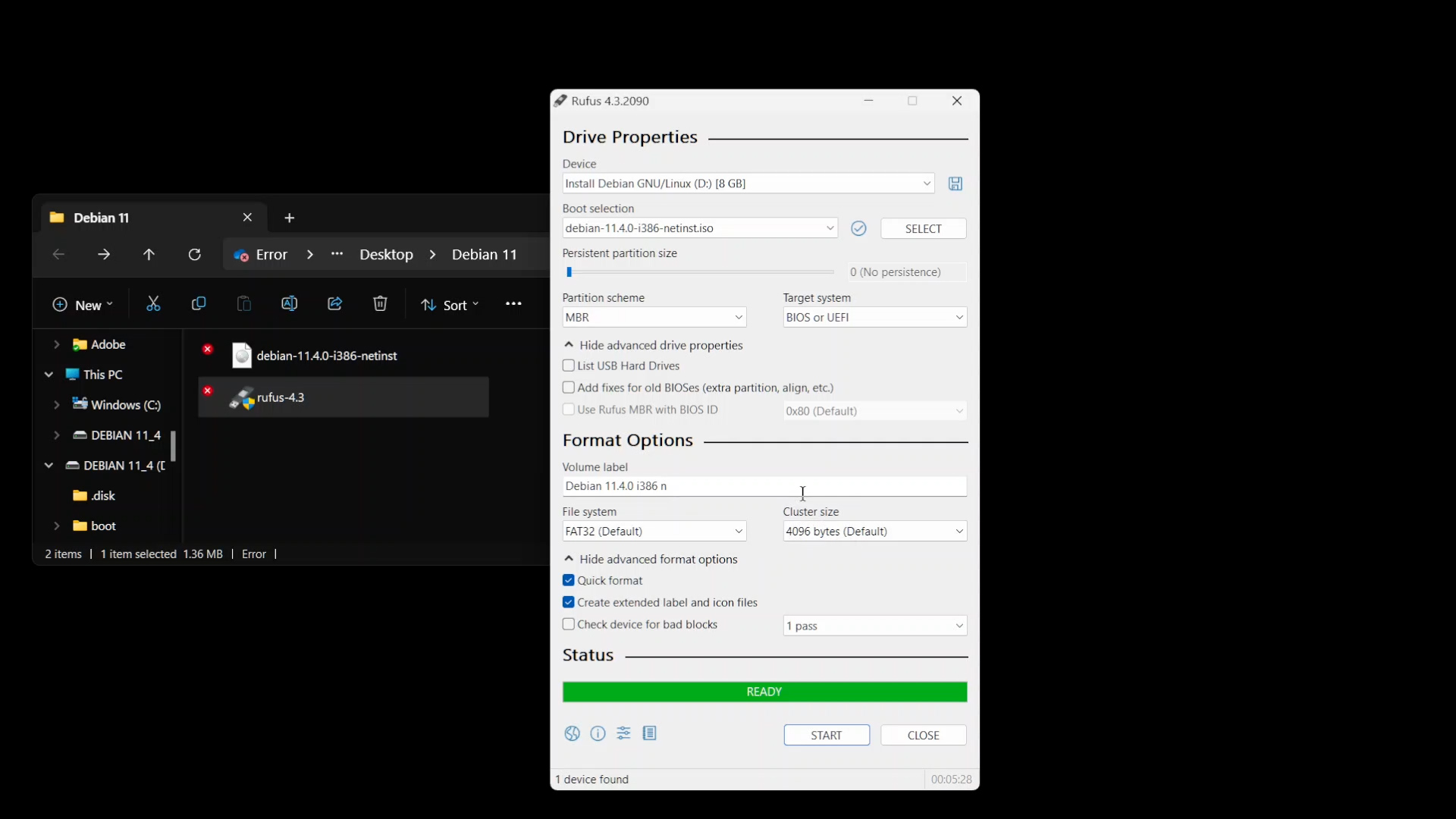

Use tool Rufus to create Debian 11 installer



A. Execute Rufus

B. Select Boot selection as corresponding debian-11.4.0-netinst.iso Image

C. Click START

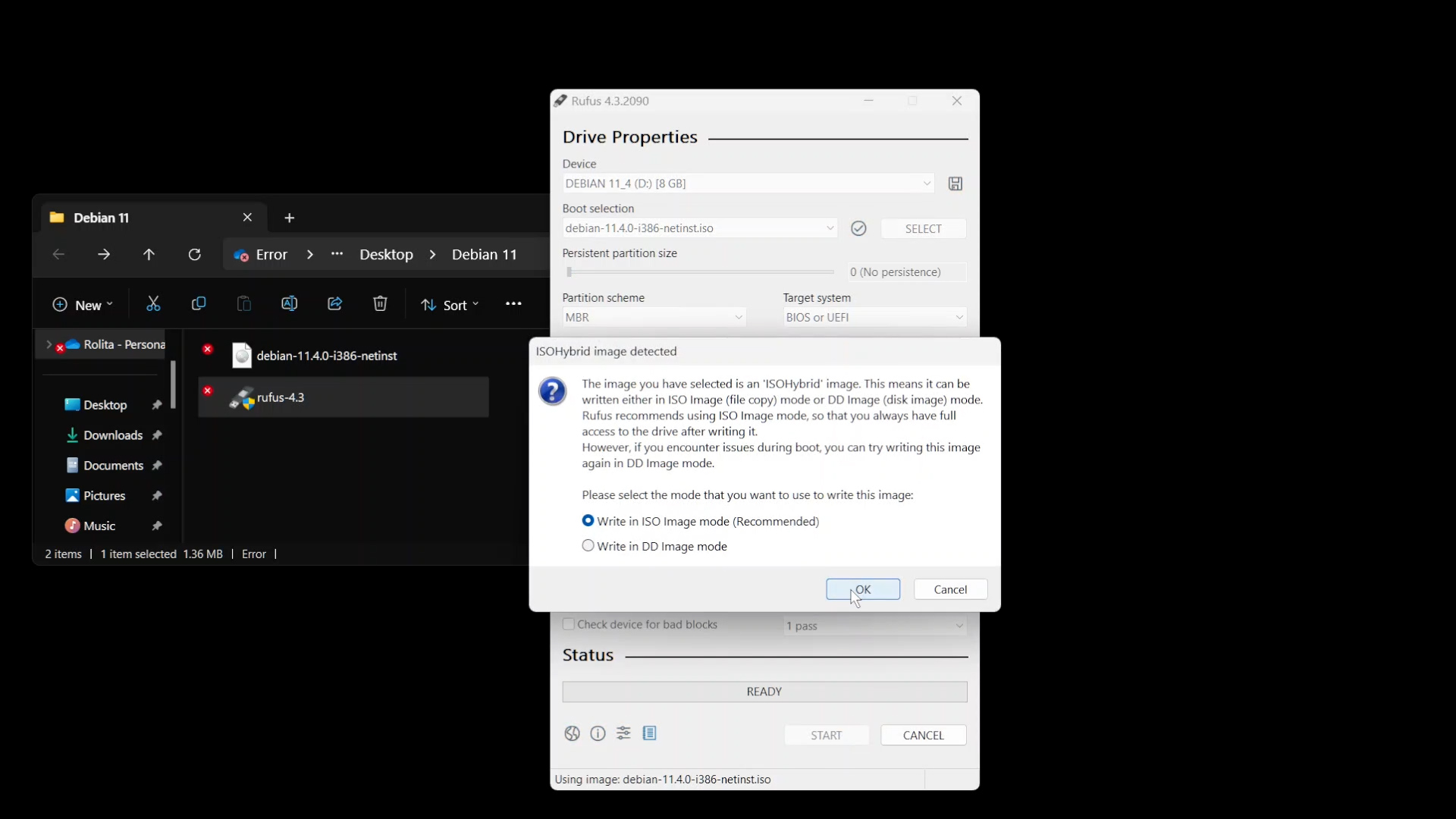

D. ISOHybrid image detected select Write in ISO Image mode and click OK

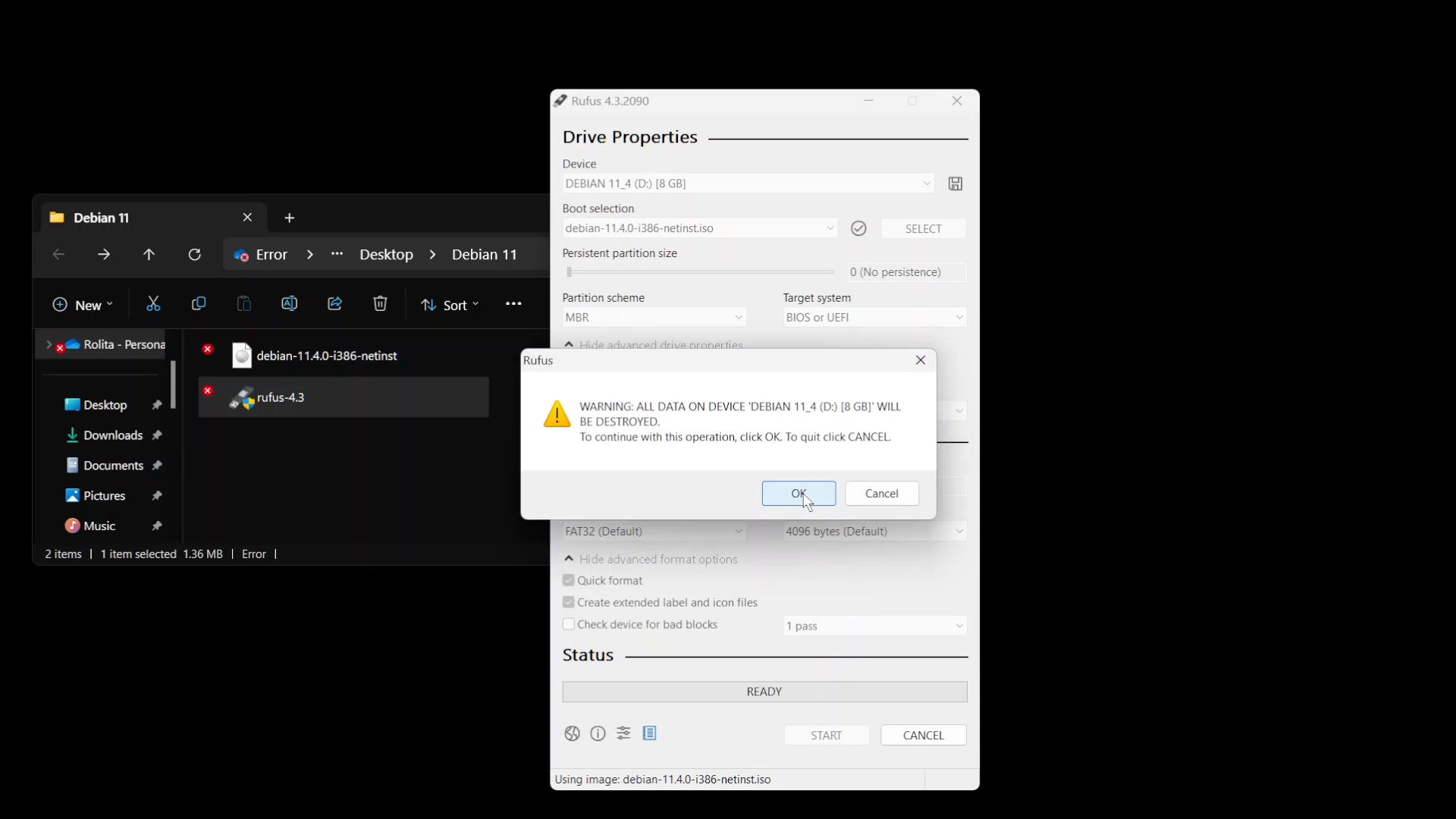

E. A Warning message appear, click OK to continue with this operation

F. Remove USB drive after Debian 11 installer created

---

Debian 11 installation

Boot up EBOX with Debian 11 installer(USB) and connect to internet

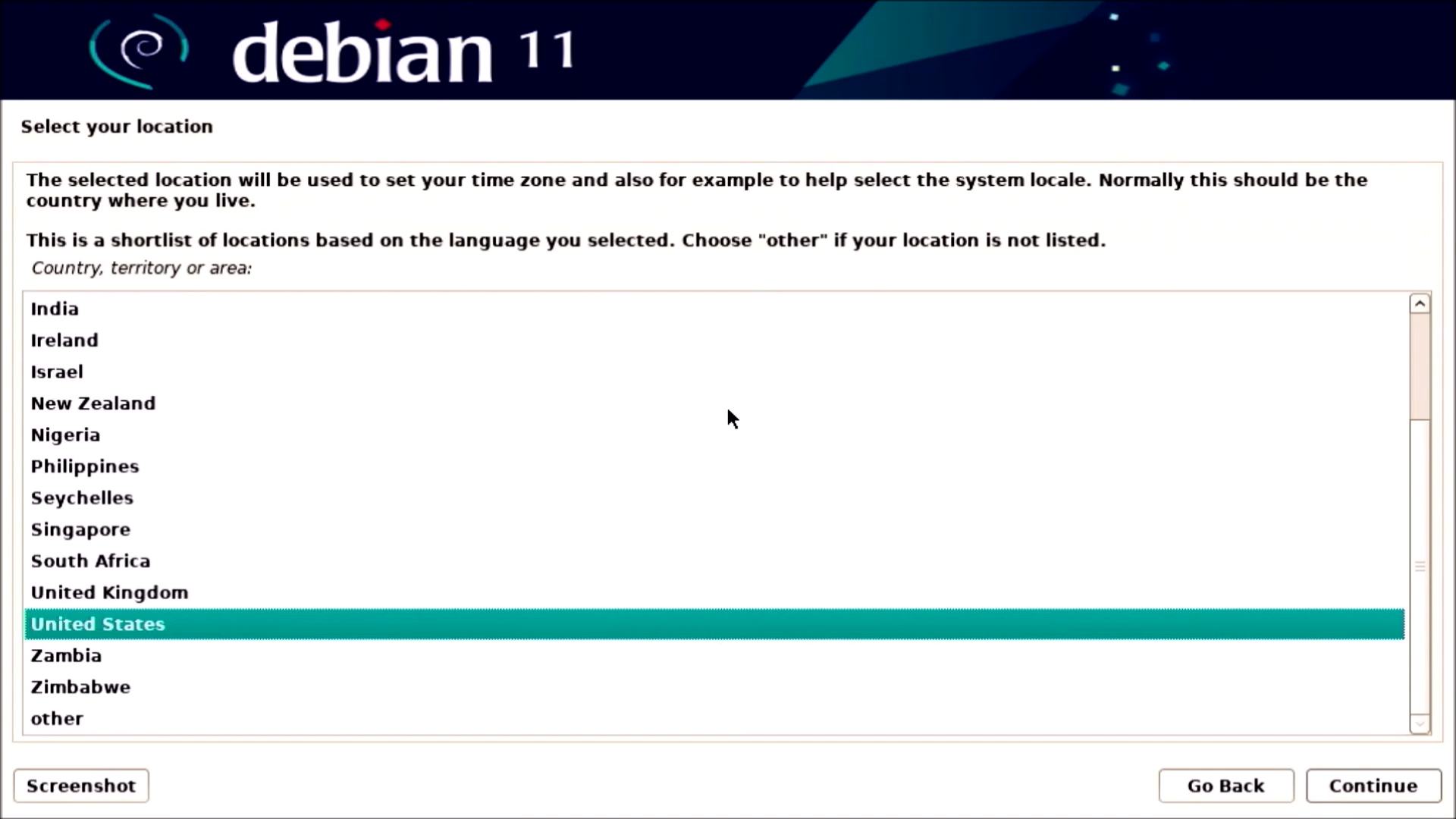

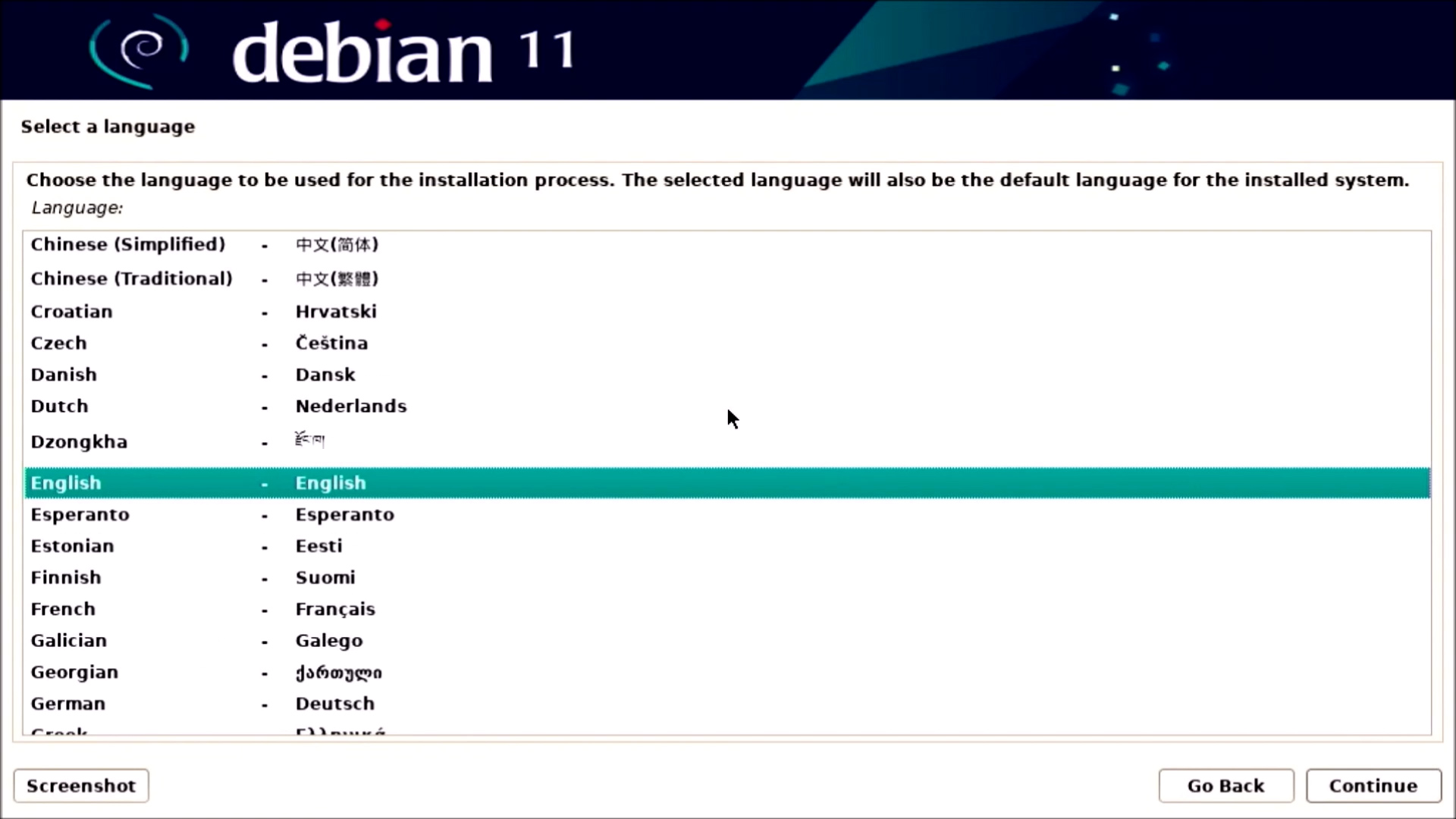

A. Select Graphical install ➔ B. Select a language ➔ C. Select your location

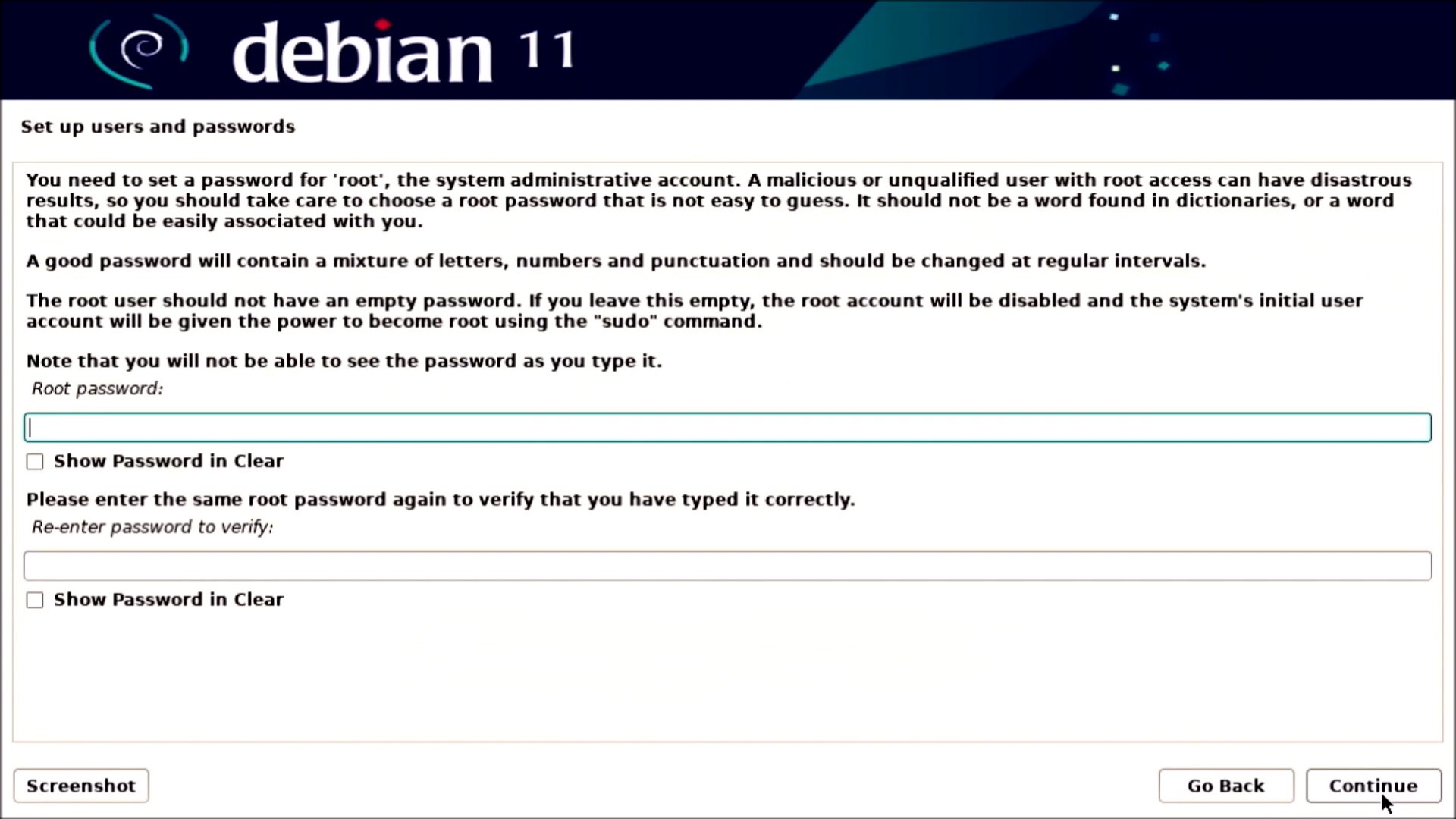

D. Set Debian as Hostname ➔ E. Skip Domain name ➔ F. Skip Root password

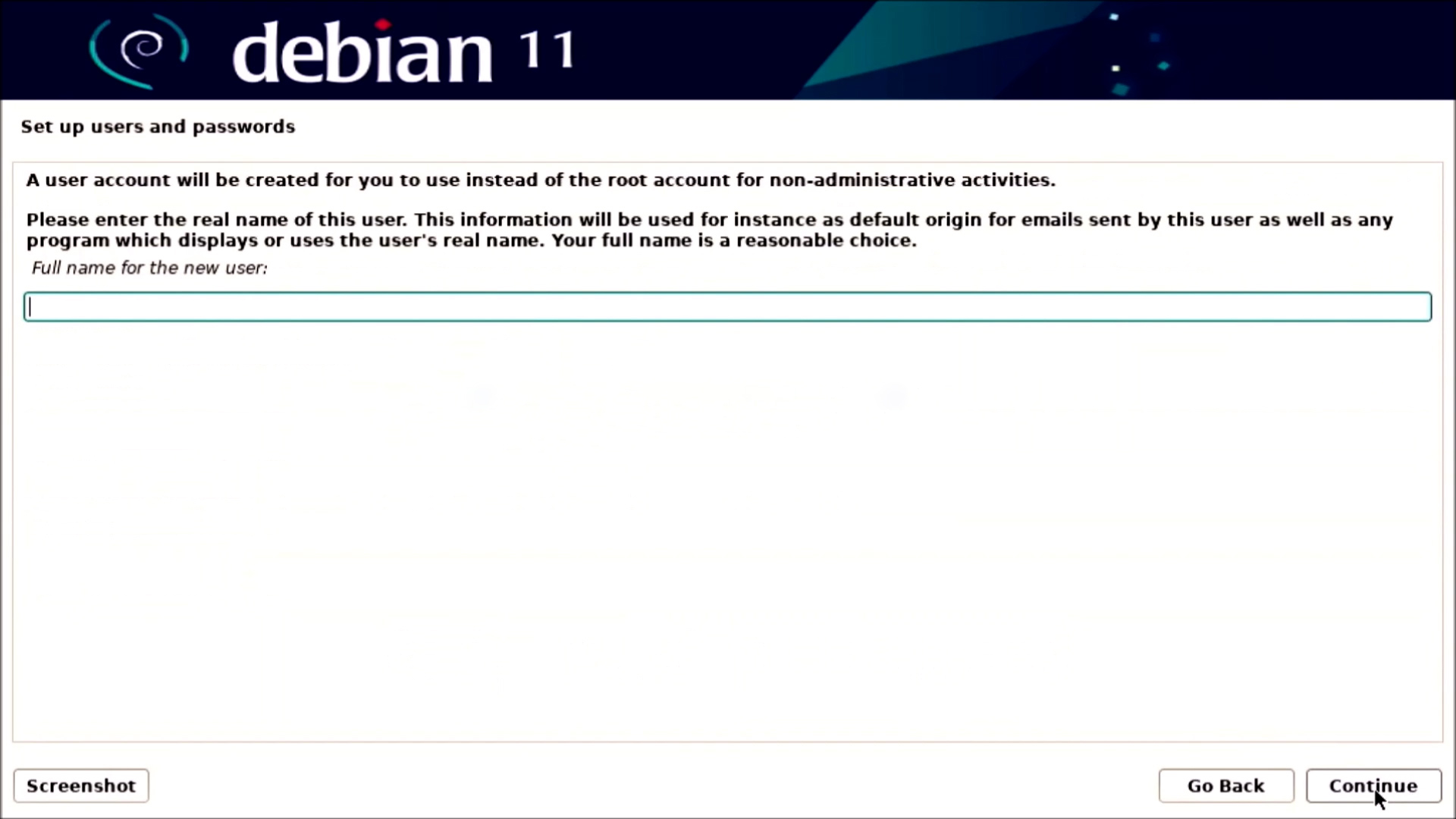

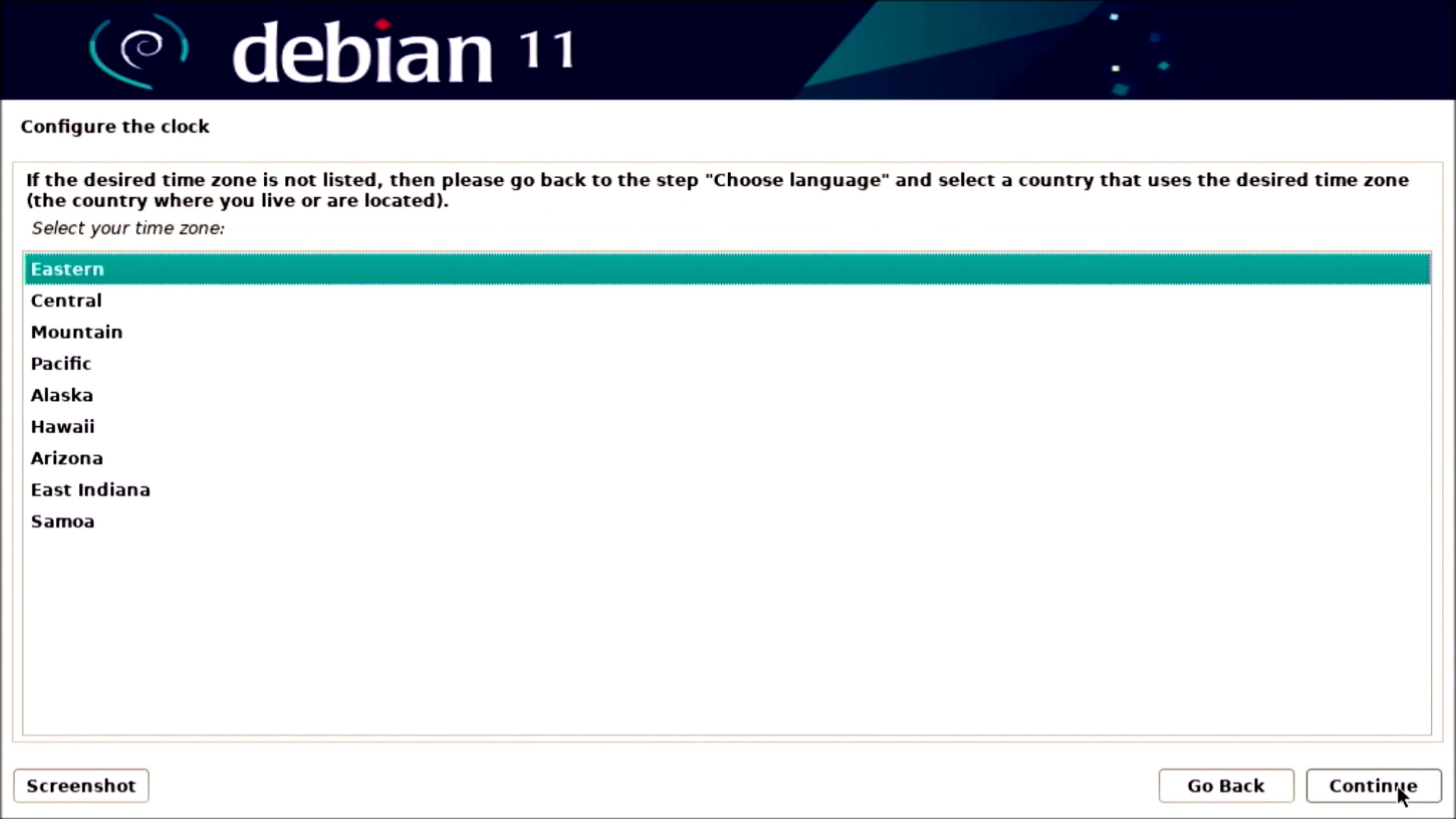

G. Set up user name ➔ H. Set up password ➔ I. Select your time zone

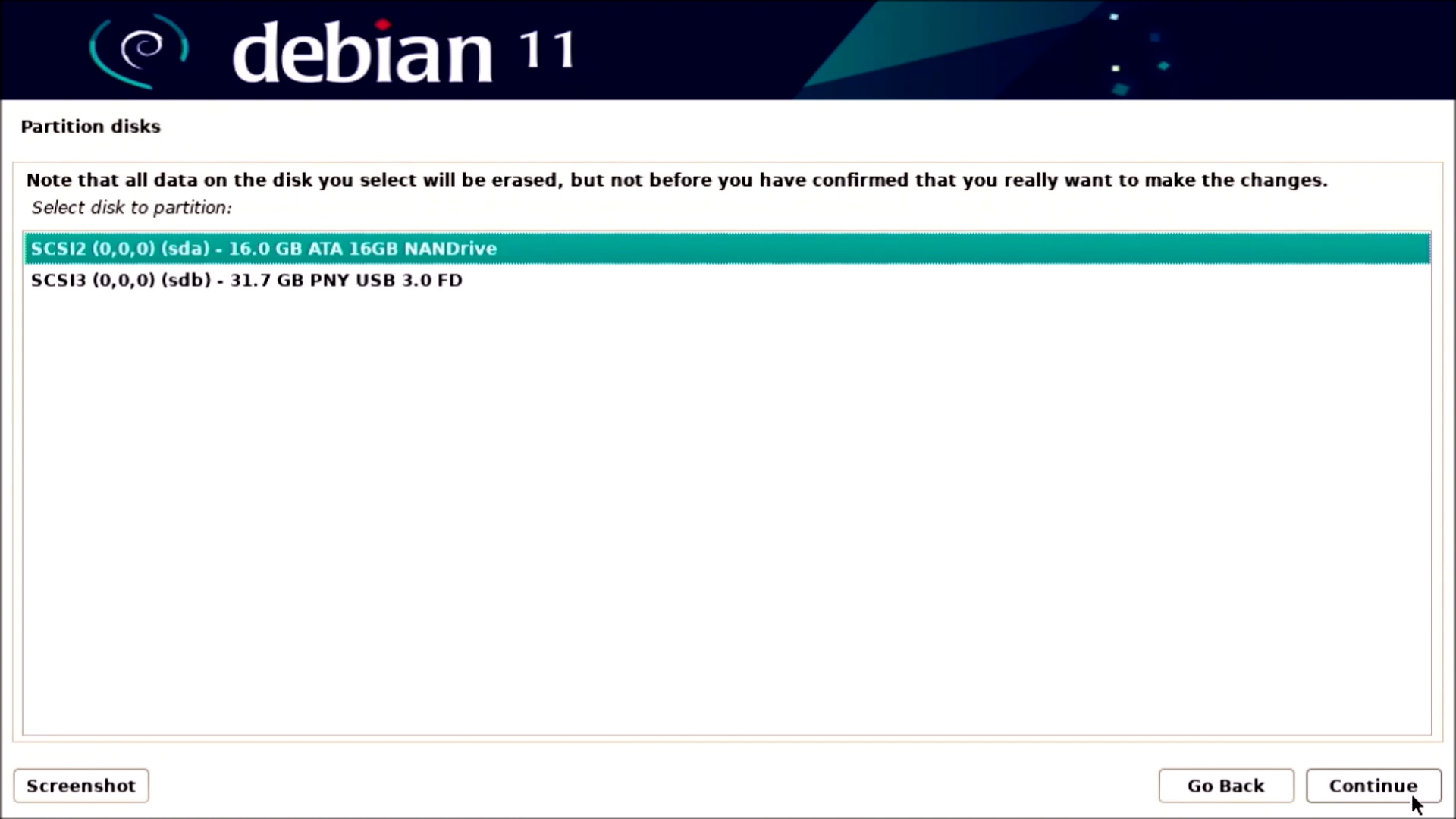

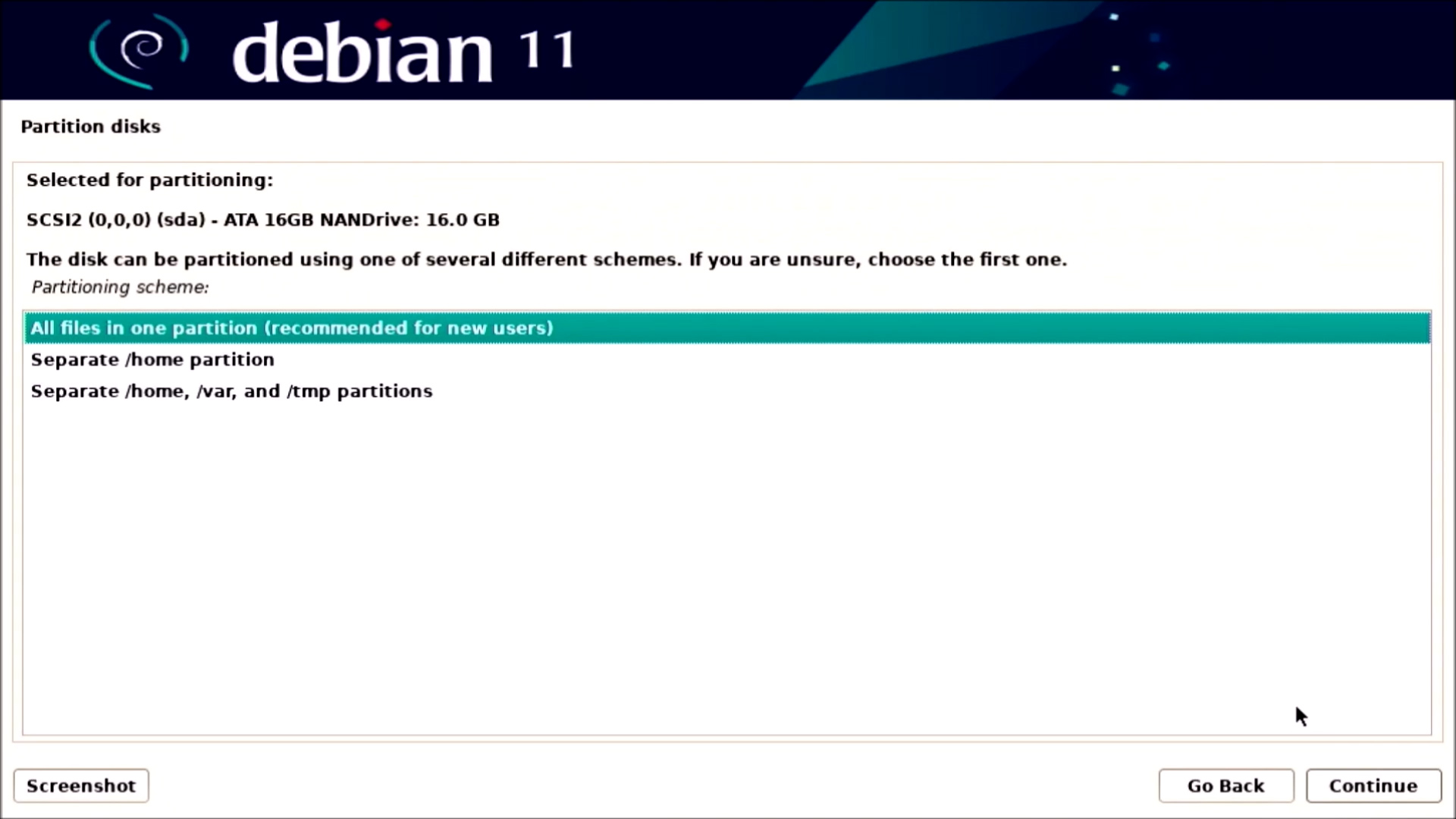

J. Select Guide – use entire disk ➔ K. Select the storage to install ➔ L. Select All files in one partition

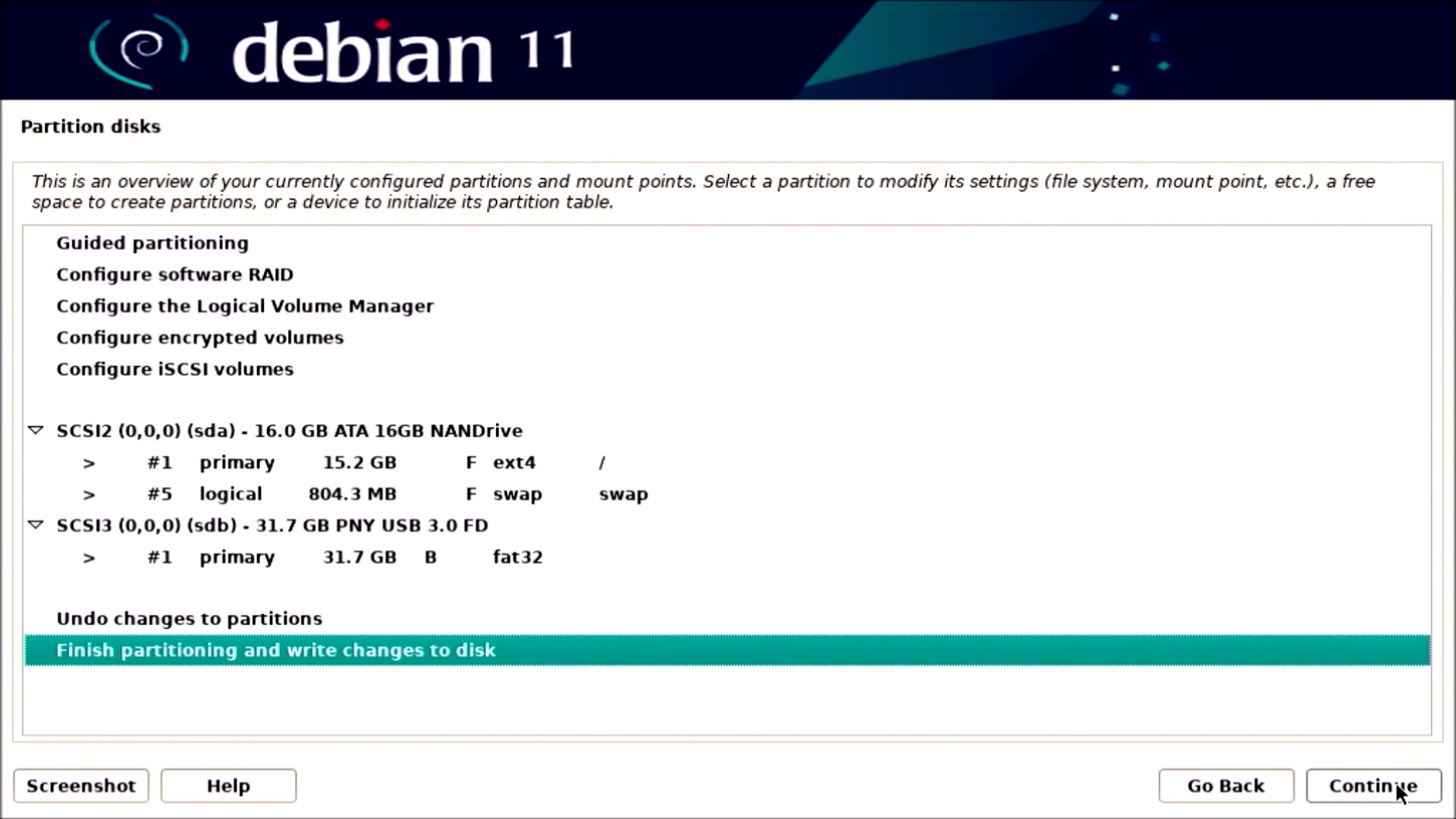

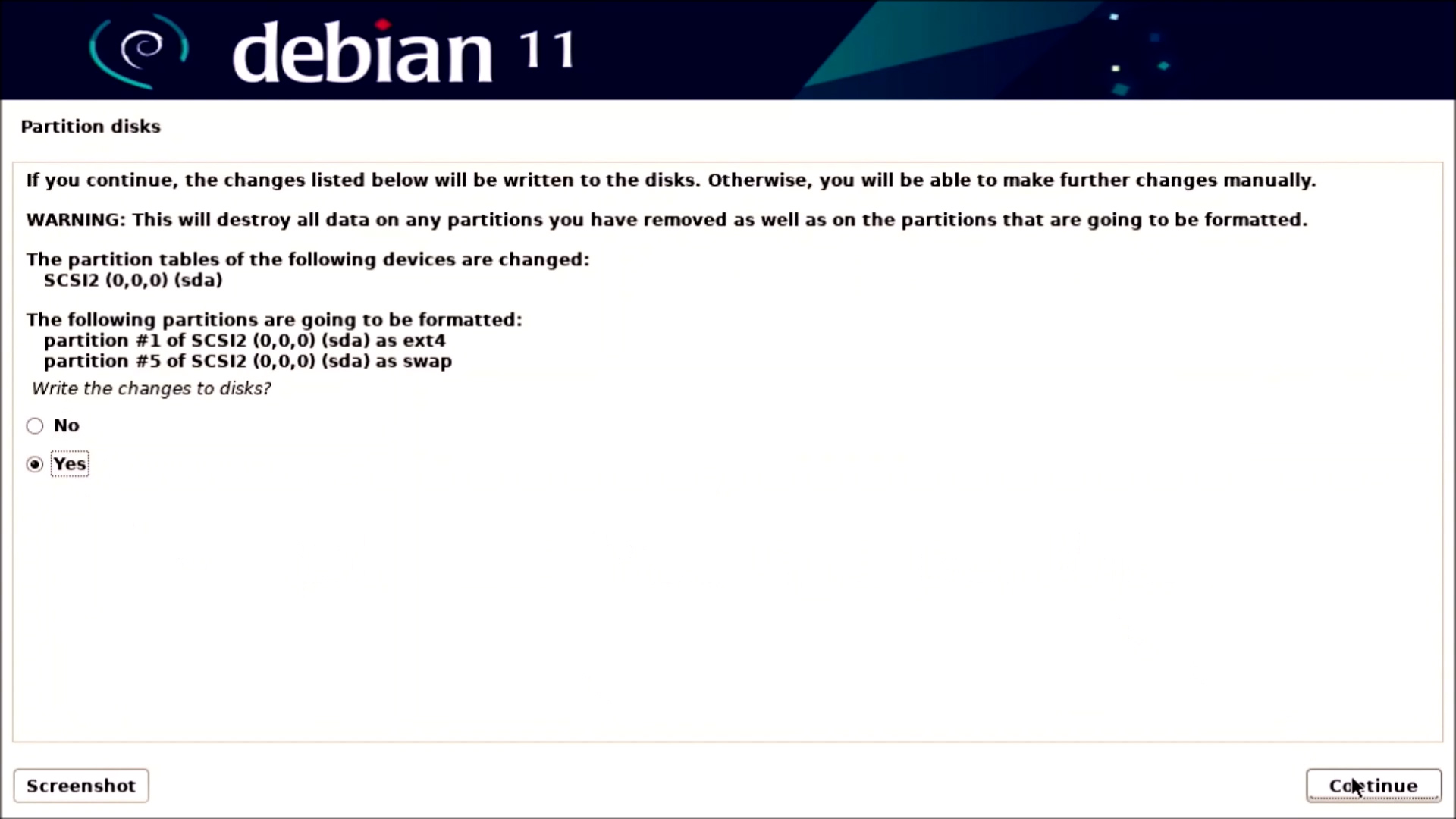

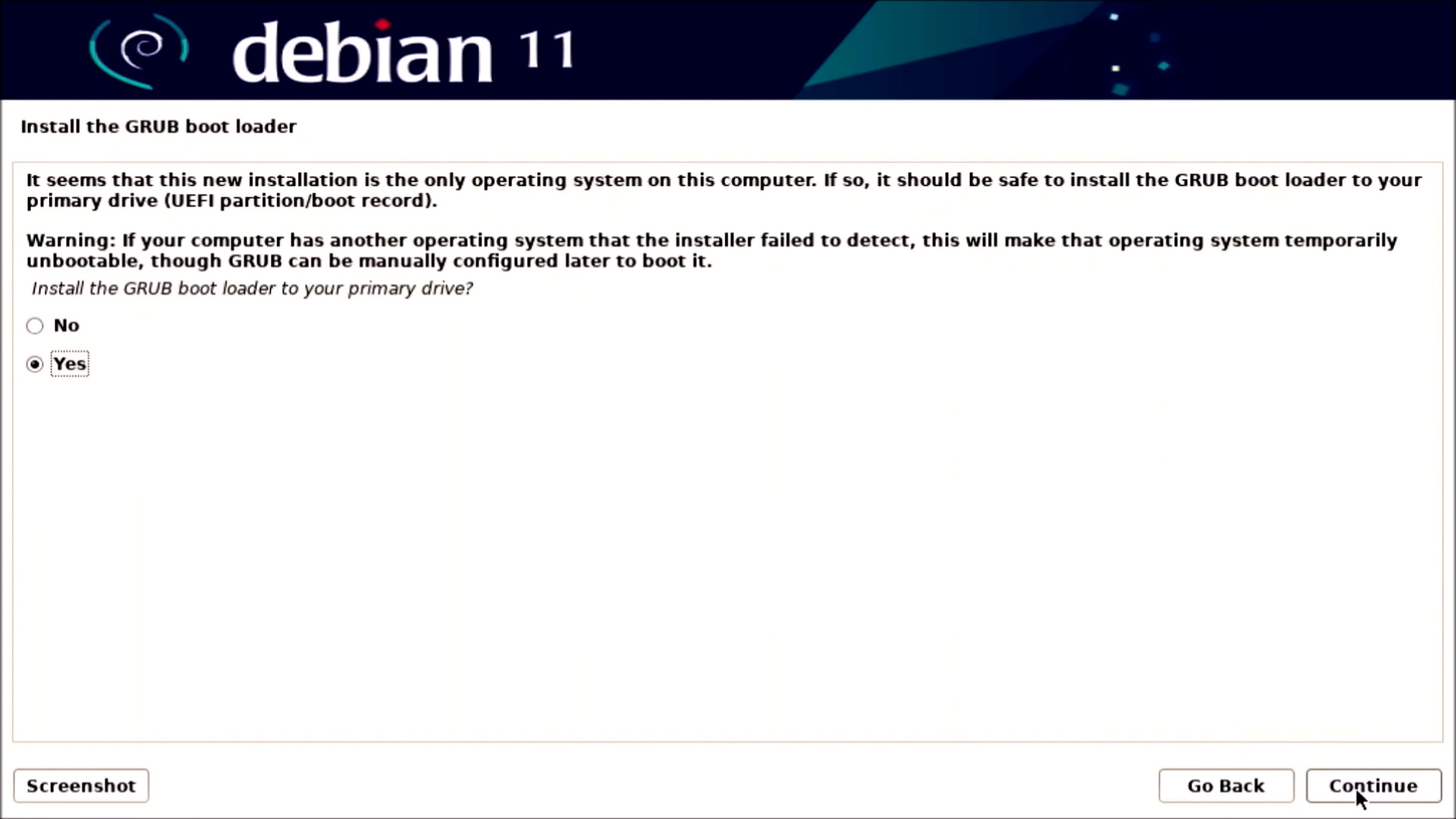

M. Select Finish partitioning and write changes to disk and click Continue ➔ N. Select Yes and click Continue to install GURB boot loader

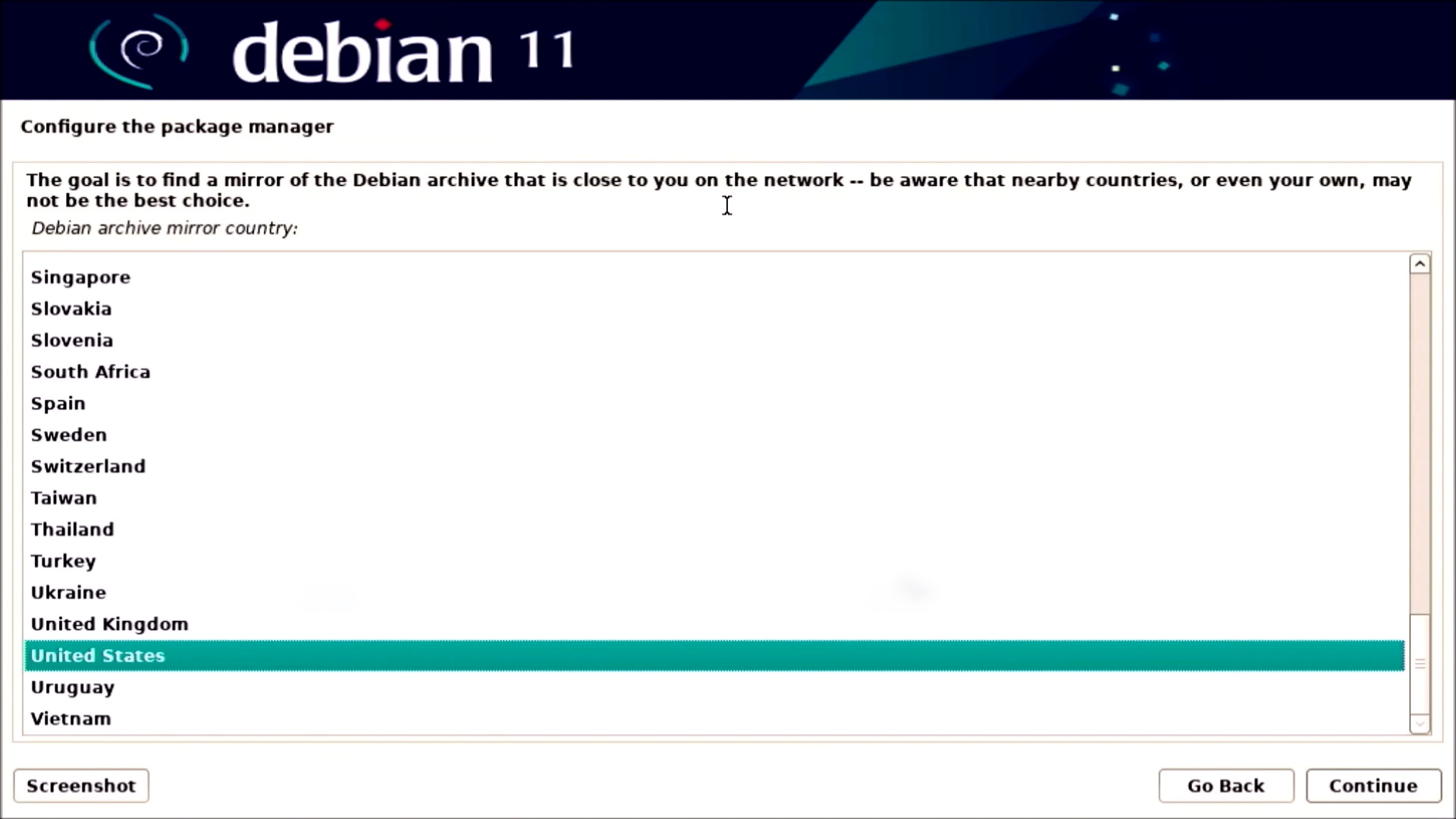

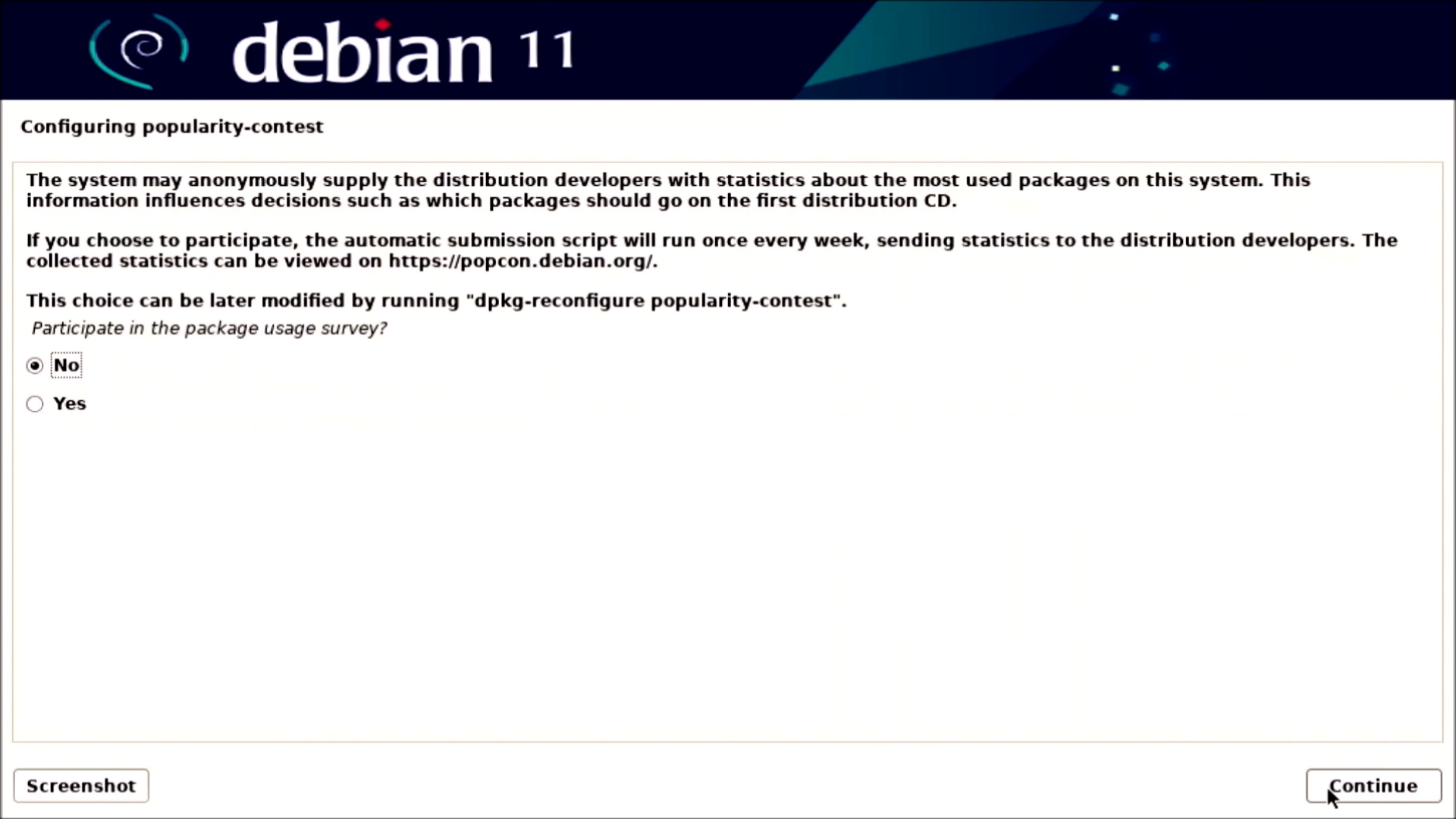

O. Choose United States and continue ➔ P. Choose No Participate in the package usage survey

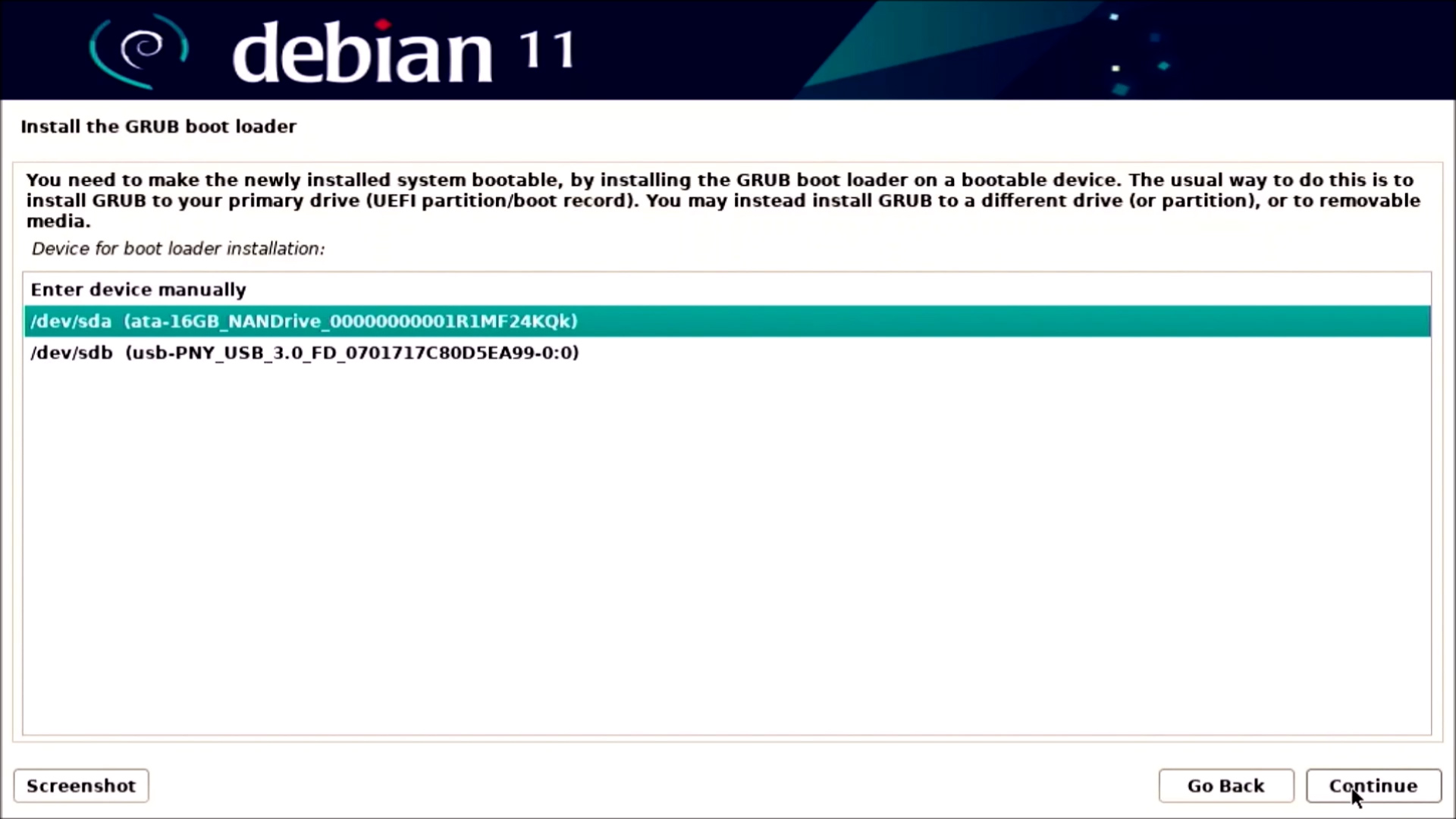

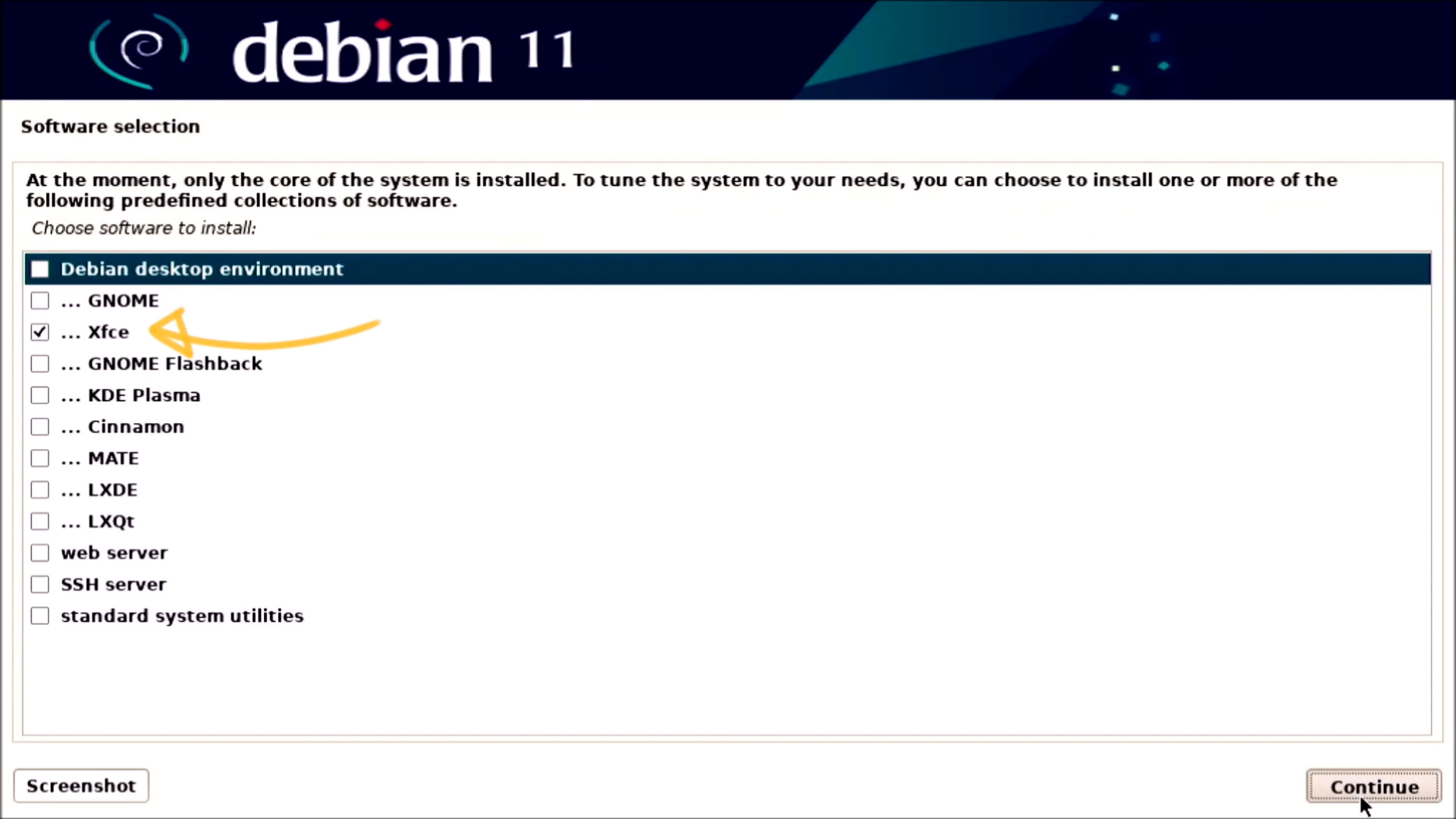

Q. Remove all checks and choose Xfce to install ➔ R. Select Yes to install GURB boot loader ➔ S. Select the storage for boot loader

Debian 11 installation completed!

---
