VOX-070-TS-N8M: An Ultra-Compact Platform with a 7

ICOP Technology has announced the release of its new ultra-compact platform, the VOX-070-TS-N8M. This versatile platform is designed to meet the present era's demanding embedded and productive applications.

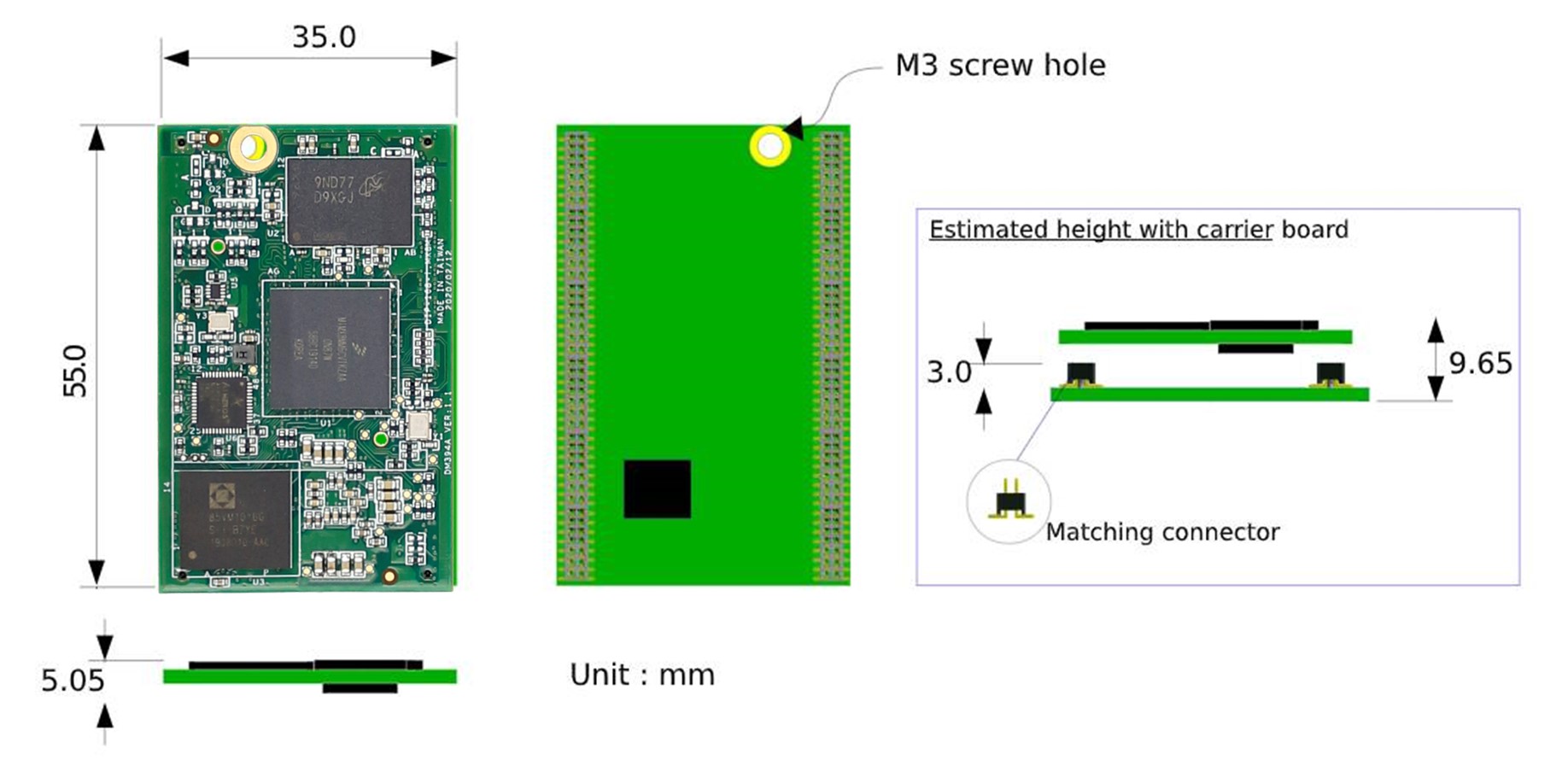

VOX-070-TS-N8M can serve as a development board for NX8MM-D168

VOX-070-TS-N8M is built with high-quality components that offer exceptional performance and reliability. Equipping NXP i.MX8MMINI CPU and 2GB LPDDR4 DRAM NX8MM-D168 module on the board, VOX-070-TS-N8M is not only a powerful and versatile computing solution but also a development platform for ICOP's NX8MM-D168. You could find more information about NX8MM-D168 here.

VOX-070-TS-N8M, An ARM-Based Open Frame Panel PC with Enhanced Connectivity and Storage

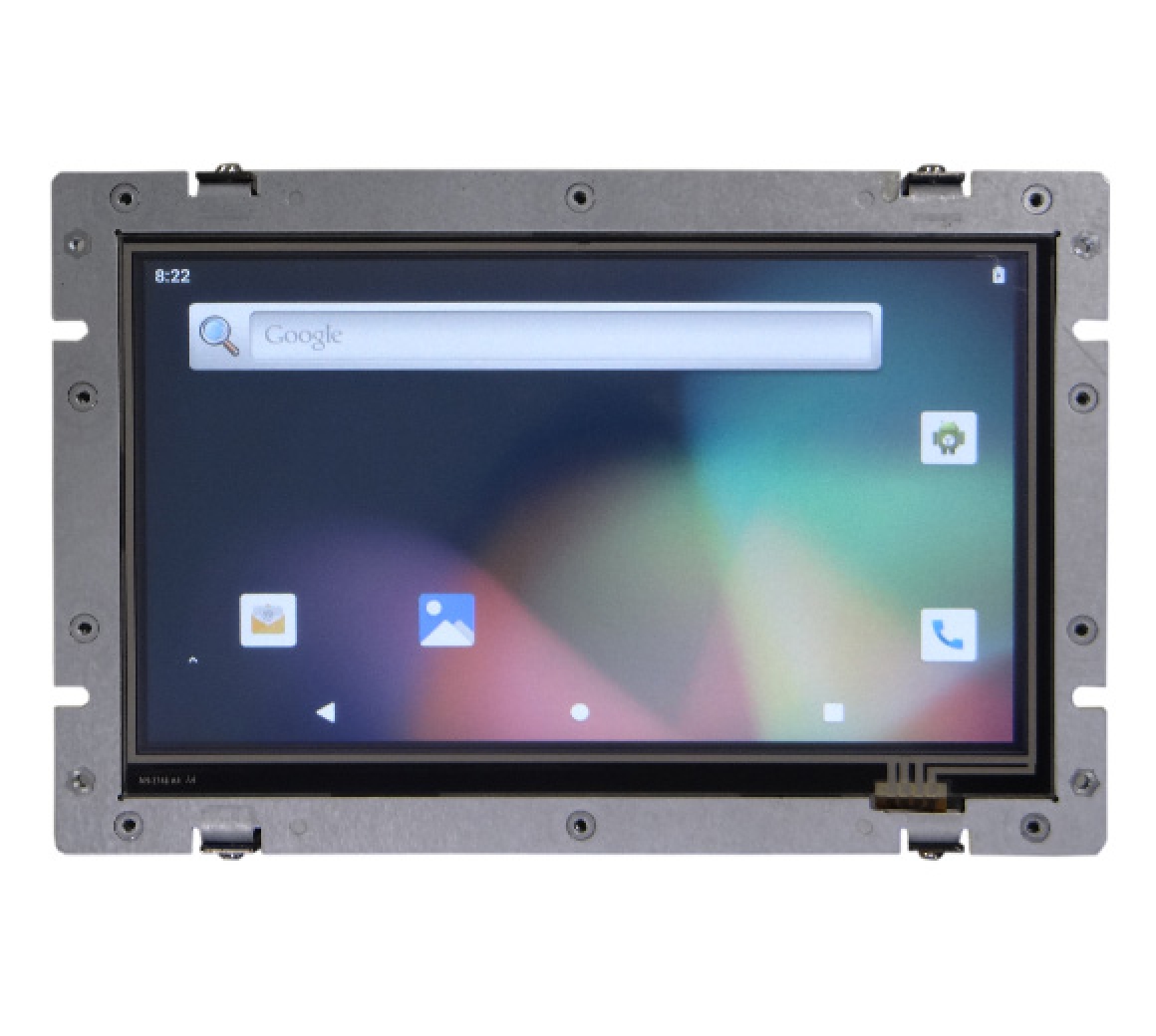

VOX-070-TS-N8M is equipped with a 7-inch TFT LCD with a resistive touchscreen and a 1024x600 resolution, making it an ideal choice for those on a limited budget. Additionally, the platform features an integrated Gigabit Ethernet port for communication capabilities, allowing it to be widely used in pre-installed Yocto Linux, Android, and other environments for seamless system integration.

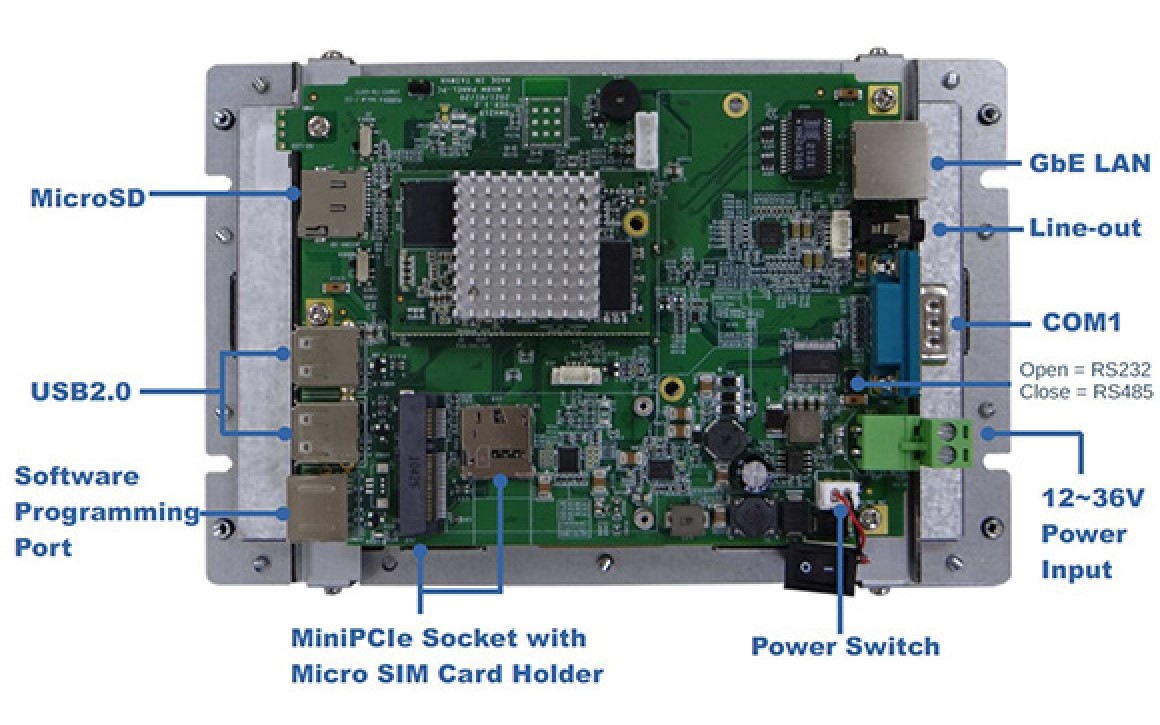

Other features of the VOX-070-TS-N8M include an eMMC-16GB onboard storage, a MiniPCIe socket with a micro-SIM card holder, and wide power voltage input (+12~36VDC) that can be powered by a variety of sources, making it ideal for use in mobile or remote applications.

Also, VOX-070-TS-N8M supports WLAN and Bluetooth capabilities (option), making it ideal for wireless communication and connectivity, and its eMMC-16GB onboard storage provides ample space for data storage, making it a perfect choice for a wide range of applications.

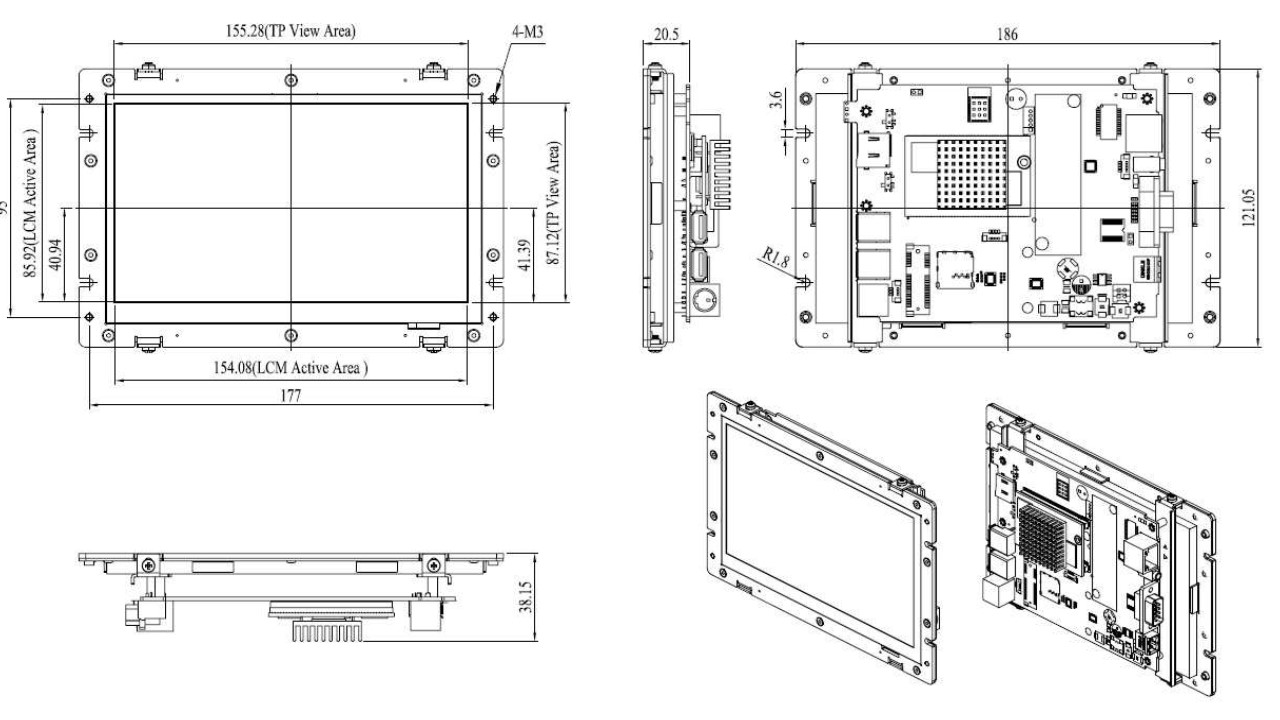

Open Frame Design for Easy Integration and Customization

In addition to its powerful hardware features, the VOX-070-TS-N8M also comes with an open frame design that allows for easy integration into a wide range of applications and can be mounted easily on a surface or inside an enclosure, making it ideal for use in space-constrained environments.
Its open-frame design also allows for flexible customization, enabling users to add their own peripherals or connectors as needed.
