QEC-RXXHU: Industrial EtherCAT SubDevice HID Gateway module with multiple interfaces and internal monitoring capabilities

QEC-RXXHU series is an industrial-grade EtherCAT SubDevice human-machine interface gateway module. Integrates rich EtherCAT gateway functions, including RS-232/485, MPG JOG, Keypad, and LCM, into the EtherCAT network for easy installation, communication, and data transmission with other devices. In addition, QEC-RXXHU has internal monitoring data capabilities to monitor the system's operating status for timely problem detection and repair.

QEC-RXXHU has passed the validation of consistency testing tools and is suitable for various traditional industrial automation applications, such as production line control, robot control, smart warehousing, etc. It can easily convert the communication method to the EtherCAT protocol to improve system stability and reliability.

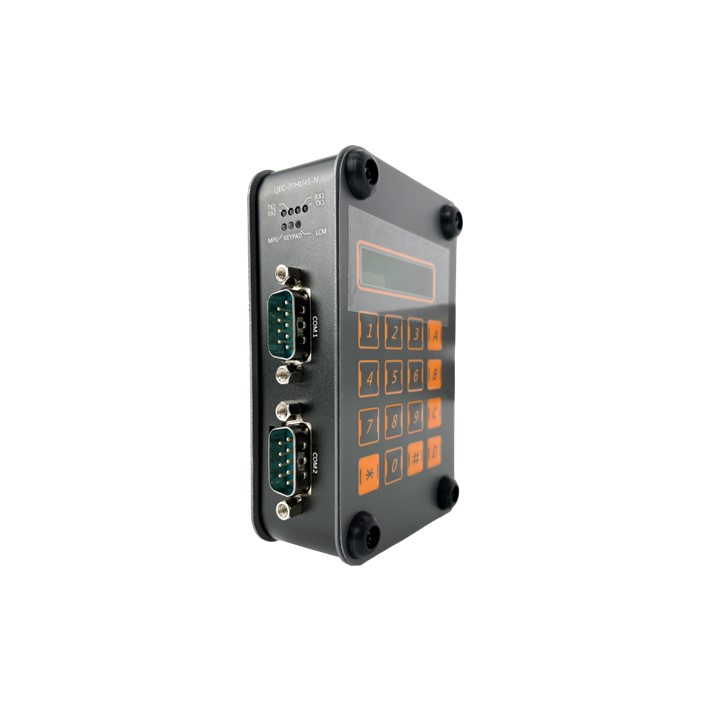

QEC-RXXHU, a Compound EtherCAT SDevice Human-Machine Interface Gateway Module

QEC-RXXHU features two standard UART interfaces that can connect to devices with RS232 or RS485 communication interfaces. With ESD protection, it is suitable for demanding industrial applications and supports overvoltage protection and hardware flow control. It can achieve a maximum speed of 115.2 k baud, making connecting the QEC-RXXHU to other traditional automation devices easy.

In addition to UART, QEC-RXXHU supports human-machine interface functions such as MPG JOG, Keypad, and LCM, improving the user's operating experience and making development more intuitive and convenient. For example, MPG JOG enables remote control of robotic arms or robots through the handwheel; Keypad allows parameter input through button presses; And LCM displays system operating status and data information. These human-machine interface functions make the QEC-RXXHU series suitable for a wider range of application scenarios, facilitating user operation and monitoring.

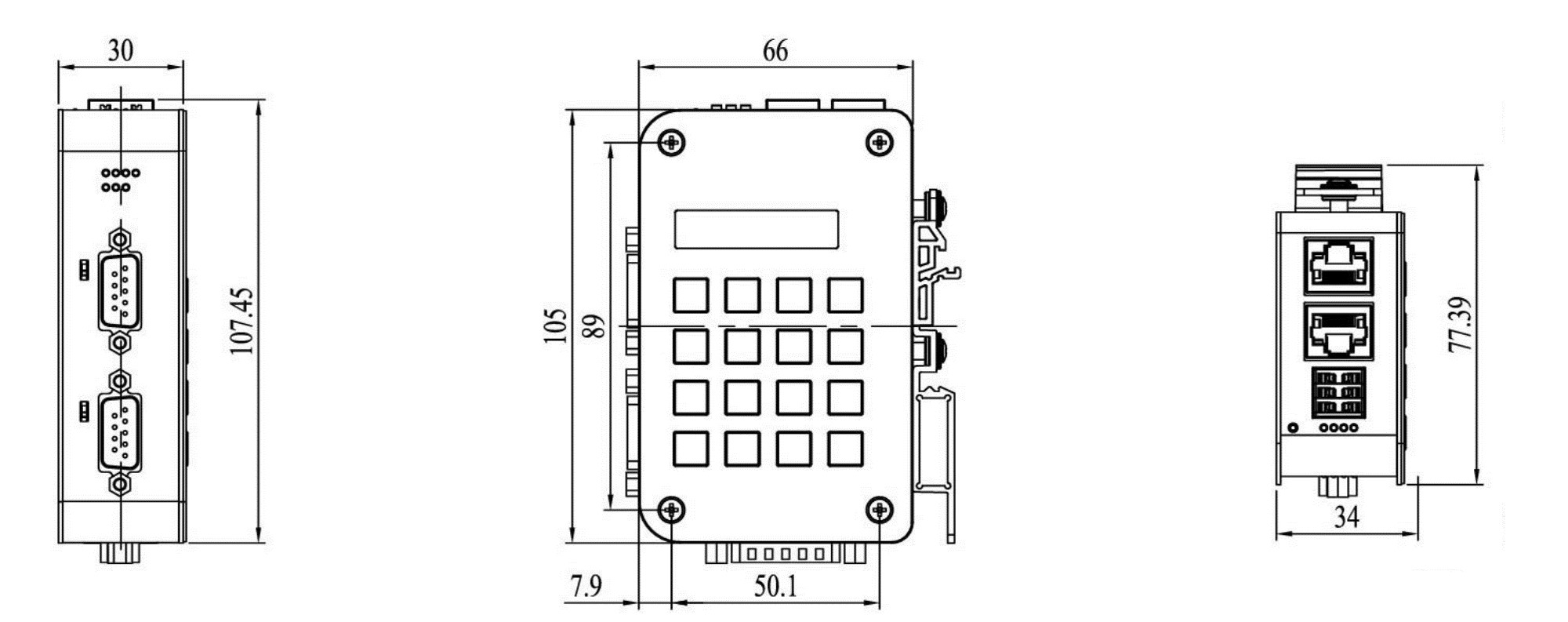

QEC-RXXHU has dimensions of 107.45 x 77.39 x 34 mm and can be conveniently installed in a system using a Din-Rail. It operates in a temperature range of -20°C to +70°C and features two network interfaces for EtherCAT network redundancy, which enhances system reliability and stability.

In addition, the QEC series products also have the function of internal monitoring data, which can monitor the internal hardware status voltage, current, and internal working temperature. These data can be used to calculate the product's carbon emissions, further assisting in product carbon footprint tracking, which can be presented through API calls or viewed through built-in graphical tools from QEC MDevice Software.
They can serve as a source of big data collection, providing more value for industrial manufacturing products.

QEC-RXXHU Series, Bridging Traditional Industrial Automation devices and EtherCAT

QEC-RXXHU, as a feature-rich industrial automation product, provides powerful communication and control capabilities, making it easy to achieve a variety of application scenarios in industrial manufacturing and control systems, including mechanical manufacturing, automation control, and robotics systems, with excellent performance.

If you are looking for a feature-rich, high-reliability, and easy-to-use industrial-grade automation product, the QEC-RXXHU series is a choice you cannot miss.
