PDX3-057T-8A, a compact Industrial Panel PC with 5.7-inch TFT LCD, passes CE/FCC/VCCI Certification, Shock, and Vibration

PDX3-057T-8A is an ultra-compact platform with wide power voltage input for the present demanding embedded and productive applications, which passes CE/FCC/VCCI Certification, Shock, and Vibration. PDX3-057T-8A uses a Vortex86DX3 SoC CPU that consumes only minimum power when running at 1GHz, and DDR3 memory provides a faster data transfer rate.

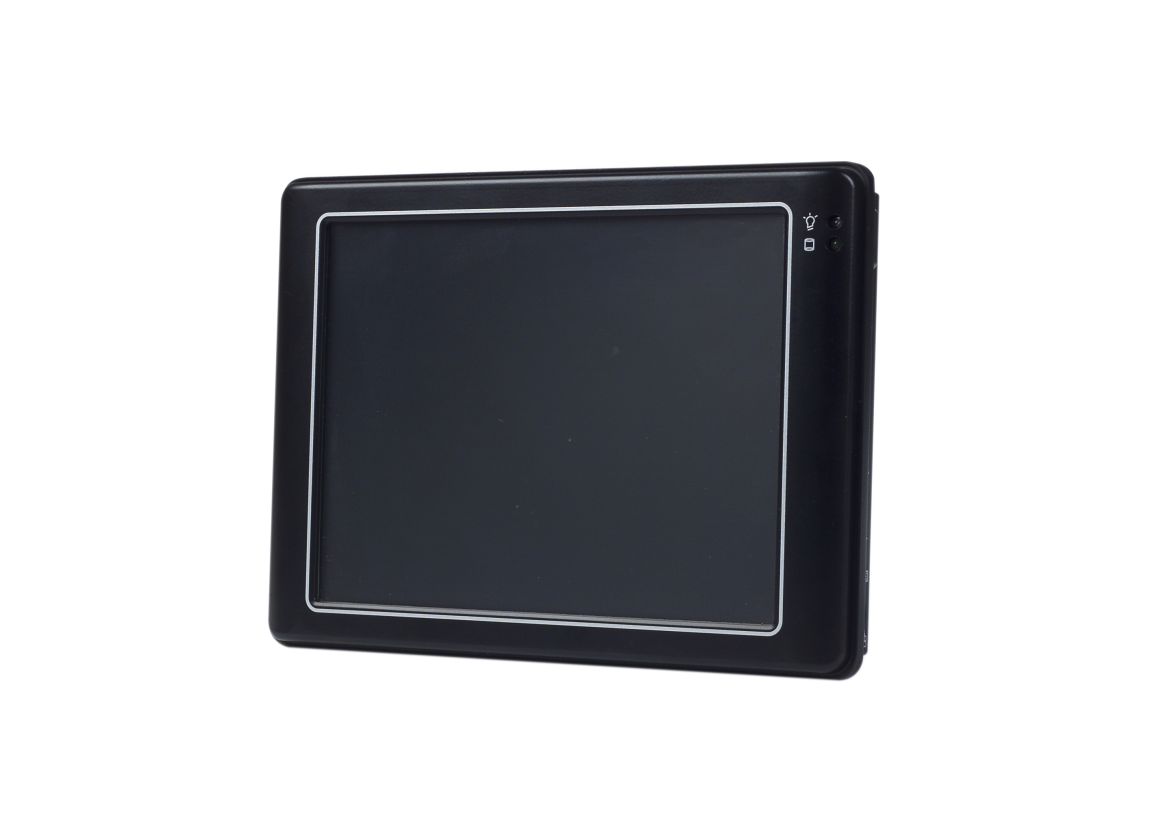

PDX3-057T-8A, a compact Industrial Panel PC with 5.7-inch TFT LCD

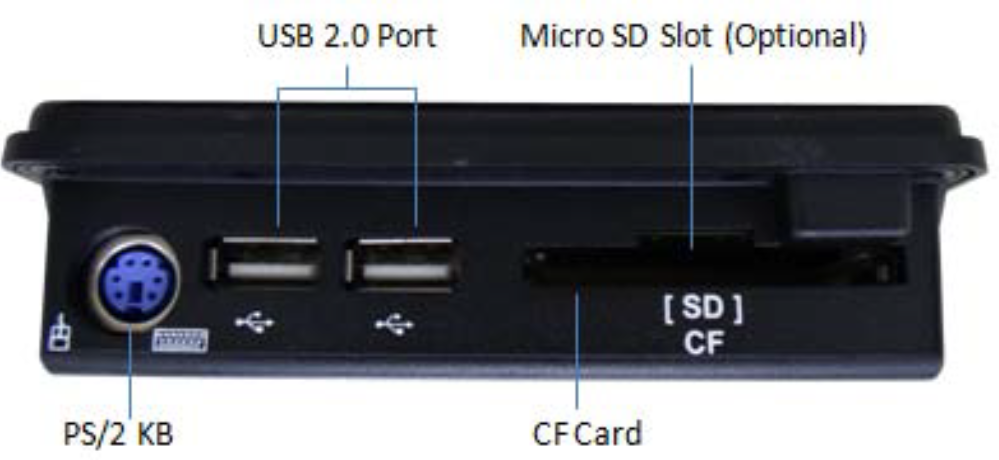

PDX3-057T-8A, with 2GB DDR3 RAM onboard memory, is designed to provide stable computing performance with low-power consumption benefits. Onboard CF socket and the optional equipped MicroSD socket or WLan; and by using a 5.7” TFT LCD, PDX3-057T-8A becomes the perfect choice for a limited budget.

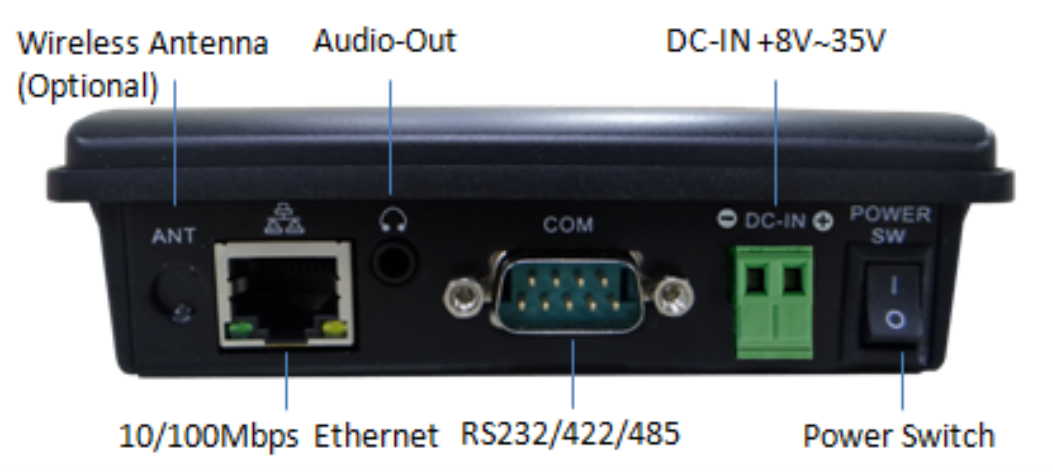

In addition, PDX3-057T-8A not only has RS485 but also supports Ethernet, which integrated 10/100M Ethernet port supplies the communication capability; that makes PDX3-057T-8A a perfect solution for system integration as it can be more widely used when running on Linux, Windows CE, Windows XP, Windows 7, and Windows Embedded environments.

During summer, the Panels are exposed to the sun, where temperatures often reach 50°C +. PDX3-057T-8A supports -20°C~+60°C operating temperature and ensure the machine can be worked in serous environment properly.

Our user operates in two major fields in which they use PDX3-057T-8A-I in buses for public transportation and access control systems. Warranty for products and facilities in the transportation market is usually three years. Our standard warranty is one year, and we can offer better conditions for our customer site.
