DM&P SoC Vortex86DX3- 1GHz
VDX3-SMARC

4S/2U/VGA/LCD/LVDS/GLAN/I2C/SPI/AUDIO/PCIe/12GPIO/SD/SATA

  • Vortex86DX3 1GHz
  • 1GB
  • 2GB
  • RS-232
  • USB
  • GLAN
  • I2C
  • SPI Bus
  • Audio
  • PCIe
  • GPIO
  • VGA
  • LCD
  • LVDS

Specifications

  • DM&P SoC Vortex86DX3- 1GHz

  • 1GB / 2GB DDR3 onboard

  • 4S/2U/VGA/LCD/LVDS/GLAN/I2C/SPI/AUDIO/PCIe/12GPIO/SD/SATA

  • Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)

  • Without: HDMI, CAN Bus, PCAM, I2S, and AFB signal

  • Long life-cycle guarantee

  • Standard SMARC module

Manual

Datasheet

Technical Resource

Processor DM&P SoC CPU Vortex86DX3 - 1GHz
L1: 32K I-Cache, 32K D-Cache, L2: 512KB Cache
RAM 1GB/2GB DDR3 Onboard
BIOS AMI BIOS
Watchdog Timer Software programmable from 30.5μs sec. to 512 sec. x 2 sets
Display Integrated 2D VGA chip with Dual Display Support (VGA + LVDS)
Share 16MB to 256MB system memory
18/24-bit Single Channel LVDS
VGA: Maximum resolution up to 1920x1080
LVDS(Single) Maximum resolution up to 1024x768
LAN Realtek 8111F 10/100/1000Mbps
Audio HD Audio
PWM None
Optional Interface None
Flash Disk Support None
I/O interface SATA x1
SD/eMMC x1
RS232 x4 (2 wire x2, 4 wire x2)
USB (ver 2.0) x2
12-bit GPIO x1
SPI x1
I2C x1
PCIe 1.0 (1 lane) x2 (Optional)
Connector 1.0mm 10-pin header for VGA x1
1.25mm 4-pin wafer for KBD x1
1.25mm 4-pin wafer for Mouse x1
1.25mm 2-pin header for Buzzer x1
Power Requirement TBA
Weight 63g
Dimensions 82 x 80mm
Operating Temp. -20℃ ~ +70℃
-40℃ ~ +85℃ (Optional)
OS Support DOS
Windows CE6.0/CE7.0/XP Professional/Embedded Standard(XPE)/Embedded Standard 7
POS Ready (WePOS)
Embedded Linux
QNX
VxWorks
FreeBSD

Module:

Item number Product Description
VDX3-SMARC-53S Vortex86DX3 800MHz SMARC CPU Module with 512MB DDR3
VDX3-SMARC-74E Vortex86 DX3 1GHz SMARC CPU Module with 1GB DDR3
VDX3-SMARC-75E Vortex86DX3 1GHz SMARC CPU Module with 2GB DDR3



Accessories:

Item number Product Description
VDX3-SMARC-DEV Development Board for VDX3-SMARC

The VDX3-SMARC is a low-power CPU module which compliant with SMARC standard. It takes advantage of the Vortex86DX3 1GHz x86 CPU, which integrates the PCIe, IDE, I2C, VGA, LVDS, PS/2, USB, and HD Audio, etc.

The VDX3-SMARC is designed as a plug-in replacement, with backward compatibility to support legacy software to extend the existing product life cycle without heavy re-engineering.

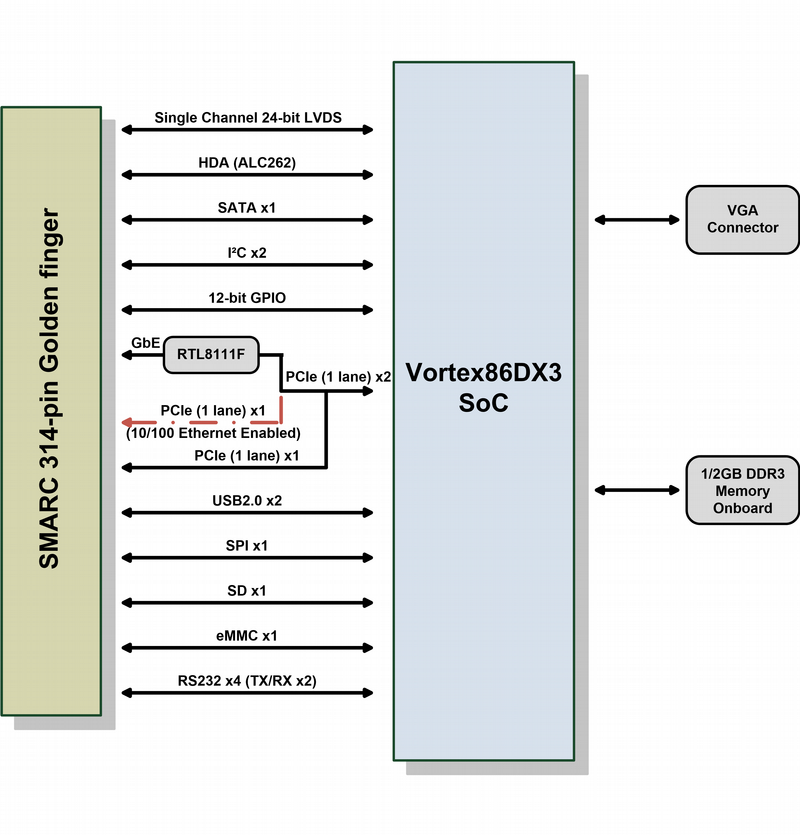

Block Diagram:
