Intel® Braswell x5-E8000 1.04GHz
IBW-6954-E4 (Coming soon)

4S/4U/HDMI/VGA/LVDS/GLAN/AUDIO/LPT/MiniPCIE

  • Intel® Braswell x5-E8000 1.04GHz
  • 4GB
  • RS-232
  • RS-422
  • RS-485
  • USB
  • GLAN
  • LPT
  • Audio
  • Mini PCIe
  • HDMI
  • VGA
  • LVDS

Specifications

  • Intel® Braswell x5-E8000 1.04GHz Quad Core

  • 4GB DDR3L 1600 onboard

  • 4S/4U/HDMI/VGA/LVDS/GLAN/AUDIO/LPT/MiniPCIE

  • Operation Temperature: 0 ~ +60°C

Manual

Datasheet

Technical Resource

CPU Intel® AtomTM x5-E8000 2.00GHz(Burst) 1.04GHz Quad Core
Intel® Pentium® N3710 2.56GHz(Burst) 1.6GHz Quad Core
Intel® Celeron® N3160 2.24GHz(Burst) 1.6GHz Quad Core
RAM 4GB DDR3L 1600
BIOS UEFI BIOS
Bus ISA Bus x1 MiniPCIe(full-size) x1
Display Hardware decoding: H.265, MPEG2, MVC, VC-1, VP8, WMV9, and JPEG/MJPEG formats
Hardware encoding: H.264, MVC, and JPEG/MJPEG formats
VGA: resolution up to 1920 x 1200 @ 60Hz
HDMI: resolution up to 2560 x 1600 @ 60Hz, 24bpp
LVDS: resolution up to 1920 x 1200 @ 60Hz, in dual LVDS bus mode
LAN RTL8111H GbE
HD Audio Realtek ALC262 VD
Disk Support SATA device mSATA device (Option)
I/O Interface COM x4 (2 for RS232/422/485) I²C x1 USB 2.0 x4 Audio (Line-out/MIC-in) Parallel/16-bit GPIO x1 (Option)
Connectors 5.4mm 7-pin Standard SATA connector x1
2.0mm 10-pin box header for COM x4
2.0mm 2-pin header for Reset x1
2.0mm 14-pin header for LPC x1
1.25mm 4-pin header for I²C x1
HDMI connector x1
Mini PCIe slot x1
2.0mm 12-pin header for VGA port x1
2.0mm 12-pin header for LAN port x1
2.0mm 2-pin box header for SATA Power x1
2.00mm 10-pin box header for USB x4
1.25mm 2-pin header for COMS battery x1
2-pin header for Speaker
Terminal block for power input x1
2.0mm 26-pin box header for Printer x1
2.0mm 2-pin header for Power button x1
2.0mm 2-pin box header for AT/ATX mode x1
1.25mm 4-pin wafer for MIC-in/Line-out x2
1.25mm 30-pin wafer for LVDS x1
Standard PC/104 connector x1
Power Requirement 5VDC
Operating Temperature 0°C to +60°C (with airflow)
Dimension 116mm x 96mm
Weight 81g
O/S Support Windows 10 Windows 7 (64bits) Linux
PART NO. CPU Speed DRAM (DDR3L) Disk Support Display GigaLAN COM USB 2.0 I²C Parallel Audio
IBW-6954-E4 (Intel® AtomTM x5-E8000) 1.04GHz 4GB mSATA SATA device Micro SD VGA LVDS HDMI 1 4 4 1 1 MIC-in Line-out
IBW-6954-A4 (Intel® Pentium® N3710) 1.60GHz
IBW-6954-B4 (Intel® Celeron® N3160) 1.60GHz
CABLE-SET
6954
Cable set for IBW-6954 (RS232 x4, USB x2, PRINT, Audio x2, LAN, VGA)

IBW-6954, a PC/104 embedded solution for industrial application based on Intel® Braswell Quad-Core CPU with 4GB DDR3L RAM onboard, provides stable and powerful computing performance.

IBW-6954 supports Gigabit LAN, 4x COM, 4x USB, I2C, Parallel, Mini PCIe, HDMI, LVDS, VGA, and SATA interface for storage for development use.

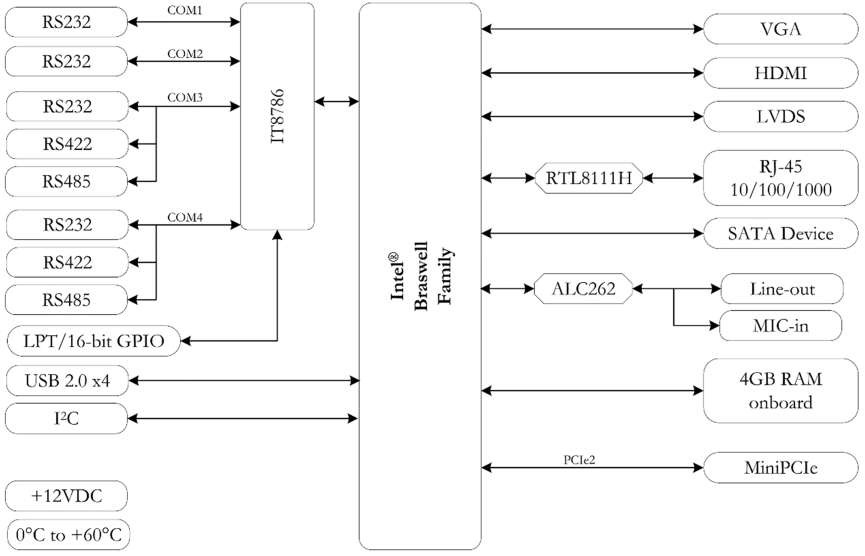

Block Diagram:
