Specifications
Intel® Elkhart Lake J6412 Processor (Quad core 2.0GHz)
DDR4 3200MHz SO-DIMM, memory up to 32GB
S/2USBC/5U/2HDMI/DP/2x2.5GbE/AUDIO/WLAN/BT
Operation Temperature: -20 ~ +60°C
M.2 M-key x1 (2260/2280), PCIe Gen.3 support NVMe SSD
M.2 E-key x1 (2230), USB2.0/PCIe x1 interface (CNVi supported) WLAN/BT
Power Requirement: DC +12V
| Processor | Intel® Elkhart Lake J6412 Processor (Quad core 2.0GHz) | |
| Memory | DDR4 3200MHz SO-DIMM, memory up to 32GB | |
| BIOS | AMI UEFI BIOS | |
| Storage | M.2 M-key x1 (2260/2280), PCIe Gen.3 support NVMe SSD | |
| Expansion | M.2 E-key x1 (2230), USB2.0/PCIe x1 interface (CNVi supported) WLAN/BT | |
| Display |
Intel® HD Graphics, shared memory HDMI 2.0 x2 (Max. 4096x2160@60Hz) DP 1.4 x1 (Max. 4096x2160@60Hz) Support Triple Displays |
|
| Ethernet |
Intel® i225-V 2.5GbE x2 |
|
| Audio |
Dual channel HD Audio Realtak ALC888S |
|
| Front I/O | COM x1 (RS232/485/422) GPIO x1 USB Type-C x2 / USB3.1 (Gen2) Type-A x1 / USB2.0 Type-A x1 |
Line-out/Mic-in combo x1 Power button |
| Rear I/O | USB 3.1 (Gen2) x1 / USB 2.0 x2 RJ45 x2 HDMI x2/ DP x1 |
Mic-in & Line-out Combo x1 DC +12 power jack |
| Power Requirement | DC +12V Power adapter only (2.5ø) | |
| Power Adapter | +12V3.34A | |
| Operating Temperature | -20~60℃ | |
| Storage Temperature | -40~+85°C | |
| Dimension | 193.2 x 108.8 x 67mm | |
| Mounting | VESA 100 x 100mm | |
| Net Weight | 1.7 kgs | |
| Certifications |
CE |
|
| OS Support | Windows 10 Windows 10 IoT Linux |
|
Order Information
| Part Number | Description |
| EBOX-EHL-6412 | Intel Elkhart Lake J6412 Fanless Box PC |
| POWER-40W-EHL | AC-DC power adapter DC12V@3.34A (AC 100~240V Input) (Optional) |
| POWERCABLE(G)(A)(EN)(AU) | Power cord US/EU/UK/AU&NZ types (Optional) |
| CASE-NUC-VESA | VESA Rack (Optional) |
The EBOX-EHL Series is powered by the Intel® Elkhart Lake J6412 processor, delivering quad-core performance at 2.0GHz. It supports up to 32GB of DDR4 3200MHz RAM and features a PCIe Gen.3 M.2 slot for NVMe SSD storage.
This compact system supports triple displays with Intel® HD Graphics, featuring dual HDMI 2.0 ports and one DisplayPort, all capable of 4K output. The device includes dual 2.5GbE Ethernet ports and dual-channel HD audio via Realtek ALC888S.
Front I/O options include USB Type-C, USB 3.1, and USB 2.0 ports, along with COM and GPIO interfaces.
The rear I/O panel features additional USB and video outputs, ensuring versatile connectivity.
Designed to operate in temperatures ranging from -20°C to +60°C, the EBOX-EHL Series runs on a DC +12V power supply and supports Windows 10, Windows 11 (64-bit), and Linux. Its compact dimensions (193.2 x 108.8 x 67mm) and lightweight (1.7kg) make it suitable for a range of industrial and commercial applications.

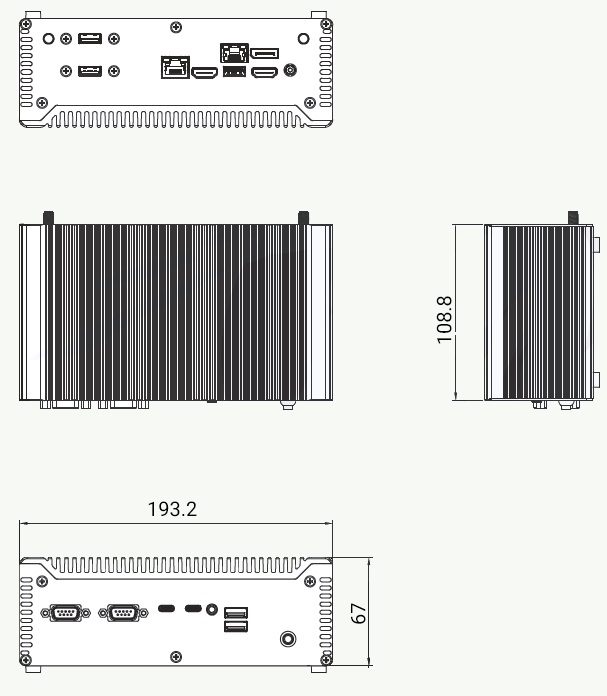

Appearance Diagram:
