Intel® Apollo Lake N3350 - 1.1GHz
EBOX-ALN3350 w COM

1S/4U/VGA/2GLAN/2in1 Mic-inLine-out/mPCIe/half-size mPCIe/SATA/mSATA/2HDMI/
SIM/8~16V

  • Intel® Apollo Lake N3350 - 1.1GHz
  • 8GB
  • RS-232
  • RS-422
  • RS-485
  • USB
  • GLAN
  • Mic-in
  • Line-out
  • SIM
  • Mini PCIe
  • mSATA
  • SATA
  • HDMI

Specifications

  • Intel® Apollo Lake N3350 - 1.1GHz

  • SO-DIMM 8GB DDR3L

  • 1S/4U/VGA/2GLAN/Mic-in + Line-out/mPCIe/half-size mPCIe/SATA/mSATA/2HDMI/SIM holder

  • Operation Temperature: 0 ~ +60°C / -20 ~ +60°C (Optional)

  • RS-232/RS-485/RS-422 switchable

  • DIN Rail support (Optional)

  • Auto Power On

  • PXE diskless boot

  • 100x100mm VESA standard

  • Multi-Display

Manual

Datasheet

Technical Resource

Processor Intel® Apollo Lake N3350 Dual Core 1.10GHz, 2.40GHz (Burst)
Memory SO-DIMM slot x1
DDR3L-1866MHz up to 8GB
BIOS AMI UEFI BIOS
Expansion Full-size MiniPCIe x1 (Supports mSATA storage)
Half-size MiniPCIe x1
SIM card slot (Function via Full-size MiniPCIe)
Display Intel® HD Graphics with Multi-Display support
HDMI: Maximum resolution support up to 3840 x 2160 pixels
HD Audio Realtek ALC662VD Mic-in & Line-out
Ethernet Realtek 8111H GigaLAN x2 (Built-in PXE diskless boot)
Disk Support mSATA x1 SATA device x1
Internal I/O 4‐pin wafer for SATA power output x1
5-pin header for SMBus x1
USB 2.0 x2 (pin type)
SIM card holder x1
Full-size MiniPCIe slot/mSATA x1
Half-size MiniPCIe slot x1
External I/O HDMI V1.4 x2
15‐pin D‐Sub connector for VGA x1
9‐pin D‐Sub connector for COM x1
(RS-232/RS-485/RS-422/8-bit GPIO)
USB 3.0 x4
RJ45 connector for GigaLAN x2
Phone Jack for Line‐out/MIC‐in x1

Power Requirement DC +12V~+16V
Operating Temperature 0℃~ 60℃/-20℃~60℃ (Optional)
Dimension 115 x 115 x 48.5mm
Mounting VESA 100 x 100mm/DIN Rail Support (Optional)
Net Weight 660g
Certifications CE
FCC
VCCI
OS Support Windows 10
Windows 10 IoT
Linux

Order Information:

Model Type CPU D-Sub 9-pin I/O Temperature
EBOX ALN3350: NR: W:
    Apollo Lake N3350   RS-232/422/485 x1   –20~+60℃
  ALJ3455: NRG:   None
    Apollo Lake J3455   8-bit GPIO x1   0~60℃
      NRCG:
        RS-232/485/422 x1 &
        8-bit GPIO x1 (No VGA)



Memory:

Memory
D3L-SODIMM-4G 4GB DDR3LRAM
D3L-SODIMM-8G 8GB DDR3LRAM



WiFi/BT Module:

Part Number Description
MINIPCIE-WLAN-161H
WIRELESS-ANTENNA 5dBi Dipole Antenna L=195mm (Support 2.4GHz and g/b/n WiFi only)
WIRELESS-CABLE-UFL Mini 1.13 (Black) Cable Assembly with MHF L150mm (L10 male)
CASE-H2F-MINIPCIE Half Size MiniPCIe to Full-Size MiniPCIE adapter



SATA DOM

Product Name
IMSATA-64G-M
IMSATA-64G-M-X
ISATA-EB-64G-H-M
ISATA-EB-64G-H-M-X

EBOX-ALN3350/ALJ3455 Series Mini PC.
Fanless PC with an Intel® Apollo Lake N3350 Dual-core and a J3455 Quad-core processor. Supports memory up to 8GB DDR3L, Multi-Display outputs, Multi-COM functions, and Dual Giga LAN. The perfect platform for IoT, M2M, Industry 4.0, Home Automation Security, Point-of-sales, and many more.
EBOX-ALN3350/ALJ3455 Series can be attached to any VESA mounting fixture; allowing it to be securely mounted onto desks, walls, or buildings, and thereby optimizes your work area. It can also attach directly to any size LCD for trade shows, presentations, promotions, etc. With FANLESS design, it's ideal to be used in an environment where temperature demand is critical.
This Series supports Windows 10, Windows 10 IoT, and Linux OS that meets ready-to-market demand and provides competitive advantages.

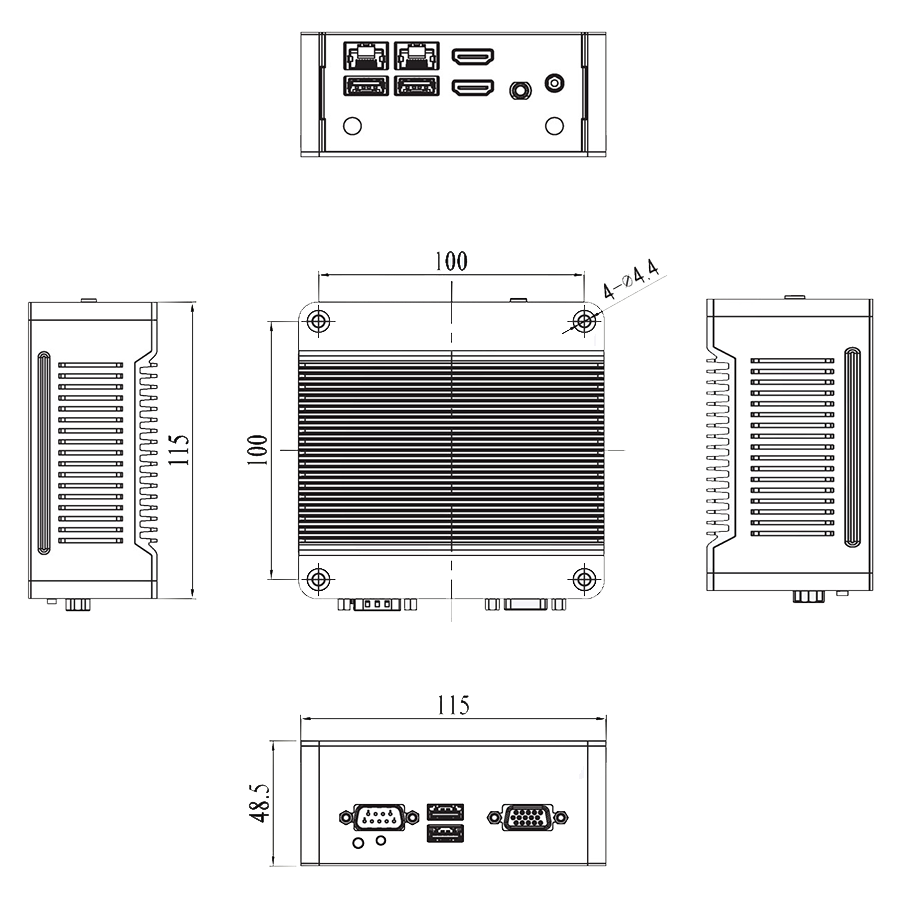

Appearance Diagram:
