Intel® Bay Trail N2930 - 1.83GHz
BYT-35-N2930

4S/8U/VGA/eDP/LVDS/2GLAN/Audio/8GPIO/I2C/mPCIE/mSATA/SATA

  • Intel® Bay Trail N2930 - 1.83GHz
  • 4GB
  • 8GB
  • RS-232
  • RS-422
  • RS-485
  • USB
  • GLAN
  • I2C
  • Audio
  • Mini PCIe
  • GPIO
  • eDP
  • VGA
  • LVDS

Specifications

  • Intel® Bay Trail N2930 - 1.83GHz

  • DDR3L-1333MHz up to 8GB

  • 4S/8U/VGA/eDP/LVDS/2GLAN/Audio/8GPIO/I2C/MiniPCIE/mSATA/SATA

  • Operation Temperature: 0 ~ +60°C

Manual

Datasheet

Technical Resource

Processor Intel® Bay Trail N2930 2.16GHz (Burst) 1.83GHz Quad Core
System Memory DDR3L 1333MHz memory support up to 8GB in SO-DIMM slot x1
BIOS AMI BIOS
Display Intel® HD Graphics with MultiDisplay support
VGA: resolution support up to 1920 x 1200
eDP: resolution support up to 1920 x 1080
LVDS: resolution support up to 1920 x 1080, dual-channel 24-bit mode
Audio Realtek ALC662 HD Audio
LAN Realtek 8111G Gigabit Ethernet Controller
Expansion MiniPCIe (full-size, share with mSATA) x1 MiniPCIe (half size) x1
Disk Support mSATA x1 (share with MiniPCIe) SATA interface x1
I/O Interface 8-bit GPIO x1
GigaLan x2
PS/2 interface x1
USB (ver. 3.0) x1
COM x4 (RS232/422/485 x1)
Line-out & MIC-in
SMBus x1
VGA x1
eDP x1
LVDS x1
USB (ver. 2.0) x7
Connectors 2-pin header for SPDIF x1
4-pin header for SMBus x1
4-pin wafer for SATA power output x1
6-pin header for PS/2 interface x1
7-pin SATA connector for SATA interface x1
9-pin header for COM x4
9-pin header for Line-out, MIC-in x1
9-pin header for USB2.0 x2
10-pin header for 8-bit GPIO x1
15-pin D-Sub connector for VGA x1
30-pin header for LVDS x1
40-pin header for eDP x1
Phone jack for Line-out x1
Power jack for Power input x1
RJ45 connector x2
USB connector for USB2.0 x3
USB connector for USB3.0 x1

Power Requirement 9 to 24VDC standard input from DC-in jack support for ATX/AT mode
Operating Temp. 0°C to 60°C
Dimensions 148 x 102 mm
O/S Support Windows 10 Windows 7 Linux
Product Name BYT-35-N2930
Processor Intel® Bay Trail N2930 2.16GHz (Burst)1.83GHz Quad Core
System Memory DDR3L 1333MHz memory support up to 8GB in SO-DIMM socket x1
Expansion MiniPCIe (full size, share with mSATA) x1
MiniPCIe (half size) x1
Disk Support mSATA (shared with MniPCIe)
SATA device
Display VGA
LVDS
eDP
Audio Line-out
MIC-in
Giga LAN 2
COM 4 (RS232/422/485x 1)
USB3.0 1
USB2.0 7
SMBus 1
8-bit GPIO 1
PS/2 interface 1

BYT-35-N2930, a standard 3.5” embedded solution for industrial application based on Intel®Bay TailQuad-Core CPU with DDR3L RAMsupport up to 8GB, provides stable and powerful computing performance.

BYT-35-N2930supports 2x Gigabit LAN, 4x COM, 8x USB, SMBus, 8-bit GPIO, 2x MiniPCIe, eDP, LVDS, VGA, and 2 storage option SATA interface and mSATA interface for development use.

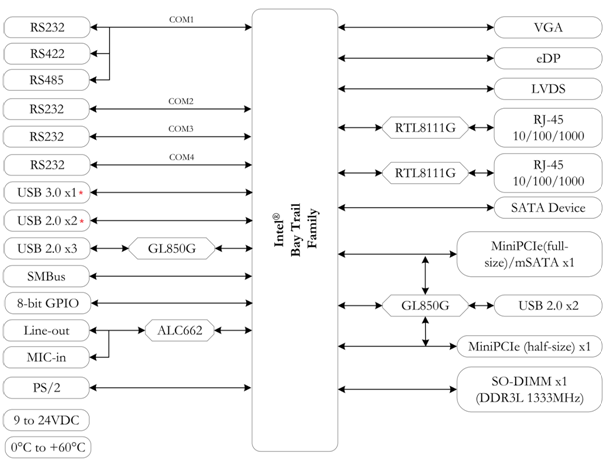

Block Diagram:
