Intel® Apollo Lake N3350- 1.10GHz
APL-PITX-N3350

2S/4U/HDMI/LVDS/GLAN/AUDIO/10GPIO/M.2 M-Key/MiniPCIE

  • Intel® Apollo Lake N3350 - 1.1GHz
  • 4GB
  • 8GB
  • RS-232
  • RS-422
  • RS-485
  • USB
  • GLAN
  • Audio
  • Mini PCIe
  • GPIO
  • M.2
  • HDMI
  • LVDS

Specifications

  • Intel® Apollo Lake N3350- 1.10GHz Dual Core

  • DDR3L 1866MHz memory support up to 8GB

  • 2S/4U/HDMI/LVDS/GLAN/AUDIO/10GPIO/M.2 M-Key/MiniPCIE

  • Operation Temperature: 0 ~ +60°C

Manual

Datasheet

Technical Resource

Processor Intel® Apollo Lake N3350   2.40GHz (Brust)   1.10GHz Dual Core
System memory DDR3L 1866MHz memory support up to 8GB in SO-DIMM slot x1
BIOS AMI BIOS
Display Intel® HD Graphics with MultiDisplay support
HDMI: resolution support up to 3840 x 2160 at 60Hz
LVDS: resolution support up to 1920 x 1080 at 60Hz
Audio Realtek ALC662VD HD Audio
LAN Realtek 8111H Gigabit Ethernet Controller
Expansion MiniPCIe (full-size) x1
Disk Support M.2 SATA x1 SATA interface x1
I/O Interface 8-bit GPIO x1
SIM card holder x1
COM x2 (RS232/422/485 x1)
USB (ver. 3.0) x2
SMBus x1
USB (ver. 2.0) x2
Connectors 2-pin header for Buzzer x1
4-pin wafer for SATA power output x1
9-pin header for USB2.0 x1
9-pin header for COM x2
30-pin wafer for LVDS x1
M.2 slot (M key 2242) for M.2 SATA x1
RJ45 connector x1
USB connector for USB3.0 x2
4-pin header for SMBus x1
7-pin SATA connector for SATA x1
9-pin header for Line-in, Line-out, and MIC-in x1
10-pin header for GPIO x1
HMDI connector x1
Power jack for 12VDC input x1
SIM card holder x1
Power Requirement 12VDC ATX power input with ATX/AT mode
Operating Temp. 0°C to 60°C
Dimensions 100 x 72 mm
O/S Support Windows 10 Linux
Product Name APL-PITX-N3350
Processor Intel® Apollo Lake N3350
2.40GHz (Burst) 1.10GHz Dual Core
System Memory DDR3L 1866MHz memory support up to 8GB
in SO-DIMM socket x1
Expansion MiniPCIe (full size) x1
Disk Support M.2 SATA
SATA device
Display HDMI
LVDS
Audio Line-in
Line-out
MIC-in
Giga LAN 1
COM 2 (1x RS232/422/485)
USB3.0 2
USB2.0 2
SMBus 1
8-bit GPIO 1
SIM Card Holder Support

APL-PITX-N3350, a standard Pico-ITX embedded solution for industrial application based on Intel® Apollo Lake Dual-Core CPU with DDR3L RAM support up to 8GB, provides stable and powerful computing performance.

APL-PITX-N3350 supports Gigabit LAN, 2x COM, 4x USB, SMBus, 8-bit GPIO, SIM card holder, MiniPCIe, HDMI, LVDS and 2 storage options SATA interface and M.2 SATA interface for development use.

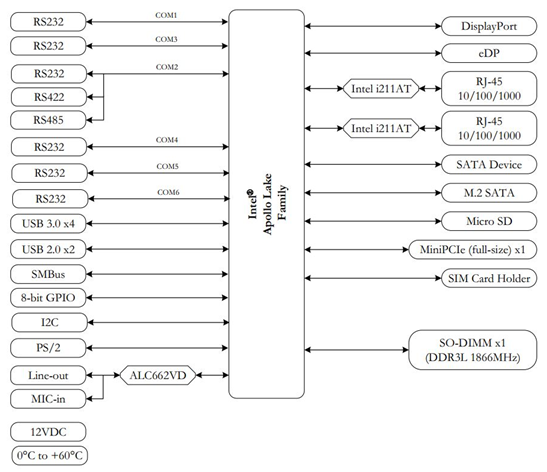

Block Diagram:
