Standard Pico-ITX Board: VDX3-PITX w/ Support for 4x USB ports, MicroSD, 11-bit ADC, and 2x GPIO

July 18, 2022

With Pico-ITX, one of the smallest form factors available for a board, displaying its benefits of low power consumption and small and lightweight occupied footprint, ICOP is happy to announce the VDX3-PITX.

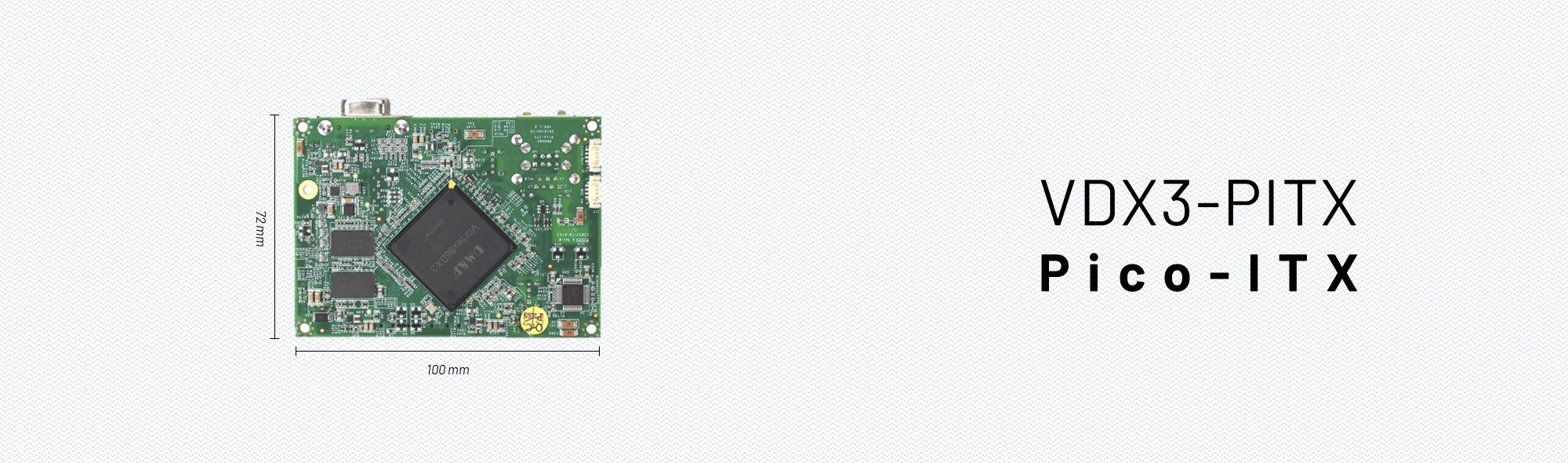

The Pico-ITX form factor has standard dimension specifications of 100 x 72 mm (3.9 x 2.8 in), or half the area of a standard Nano-ITX board.

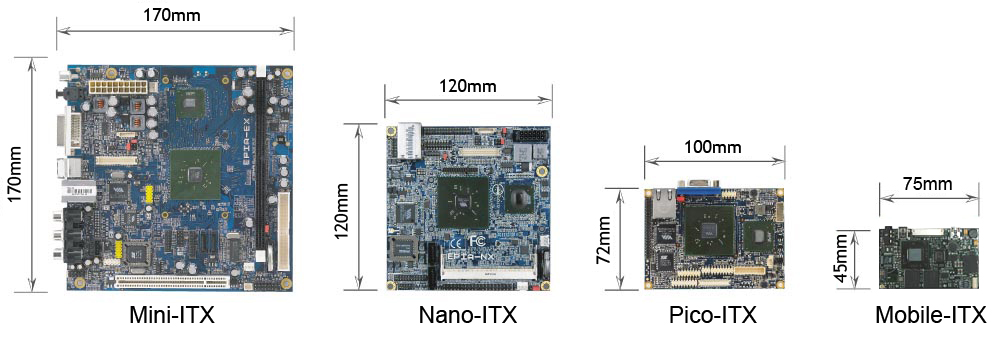

By VIA Gallery from Hsintien, Taiwan - VIA Mainboards Form Factor Comparison uploaded by Kozuch, CC BY 2.0, File

ICOP’s Standard Pico-ITX Board: VDX3-PITX

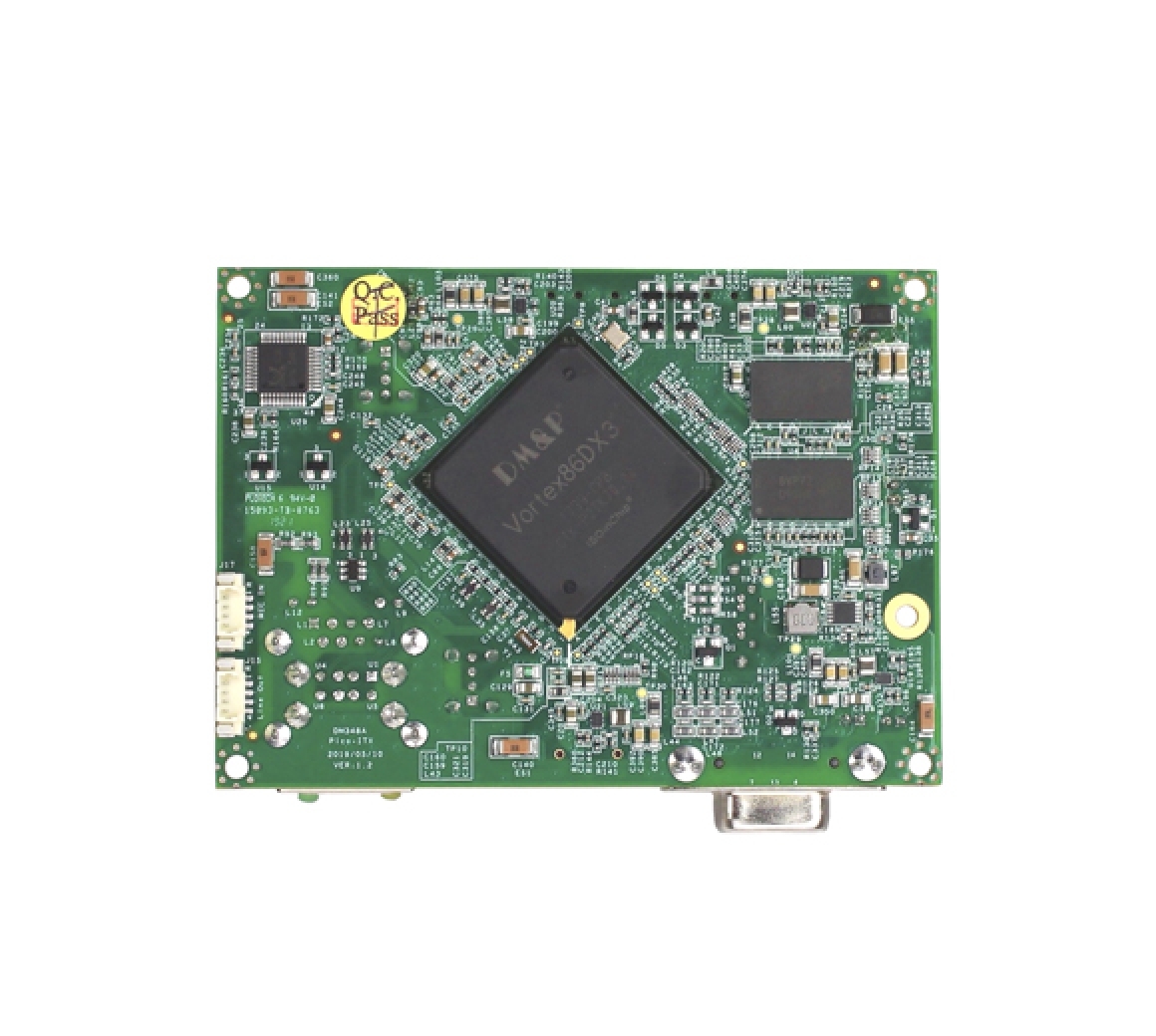

ICOP’s VDX3-PITX, our first standard Pico-ITX form factor, is designed for projects and applications that have physical size limitations. The VDX3-PITX features a Vortex86DX3 1GHz SOC that supports 2 GB DDR3 RAM, LAN, SATA DOM, MicroSD, 4x USB, 2x 8-bit GPIO, 11-bit ADC, and Audio.

VDX3-PITX-img6 VDX3-PITX-img4

The board is powered via 5V DC input and supports operational temperatures ranging from -20°C ~ +70°C when utilizing a single core and -10°C ~ +60° when running on dual cores. The VDX3-PITX also supports the Ethernet based Fieldbus system for EtherCAT smart control allowing for machine-to-machine communication using the RJ45 LAN cable.


VDX3-PITX’s Block Diagram


Main features of VDX3-PITX:

  • DM&P SoC Vortex86DX3- 1GHz
  • Standard Pico-ITX form factor
  • 2GB DDR3 onboard
  • 4U / VGA / LAN / AUDIO / 16GPIO / ADC / Micro SD
  • Operation Temperature: -20 ~ +70°C

For more info and sample request, please write to, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
