[Technical tips] BIOS Configuration for Windows Embedded Compact 7 on VDX3-6754-1G

March 03, 2022

This document will allow you to understand BIOS Configuration for Windows Embedded Compact 7 to be fully booted.

wec7_dos_bios_vdx3

The BIOS setup program on the motherboard will reconfigure your system when the host computer boots up. Press the "Delete" button to quickly access the BIOS setup screen and set the system configuration to meet the user's requirements. The BIOS setup has many options related to the memory model, memory speed, external settings, and the programs running on the motherboard. Changes to these options may affect the motherboard's performance and cause instability, so please be careful when changing the BIOS setup.


Windows Embedded Compact 7

Windows Embedded Compact 7 (formerly known as Windows Embedded CE 7.0) is the seventh major release of the Windows Embedded CE operating system. Windows Embedded Compact 7 is a real-time OS, separate from the Windows NT line, and designed to target enterprise-specific tools such as industrial controllers and consumer electronics devices such as digital cameras, GPS systems, and automotive infotainment systems.

For more details or downloads, you can see: OS Support List


Target Device

The target device we will be focusing on is the VDX3-6754-1G

BIOS Setup

To be able to boot Windows Embedded Compact 7 properly, we will need to configure the BIOS the way we needed so that Windows Embedded Compact 7 can fully booted.

  • Once you press
    Delete
    or
    DEL
    to enter the BIOS. Make sure the following and make sure to choose the one that is Bold and Underline

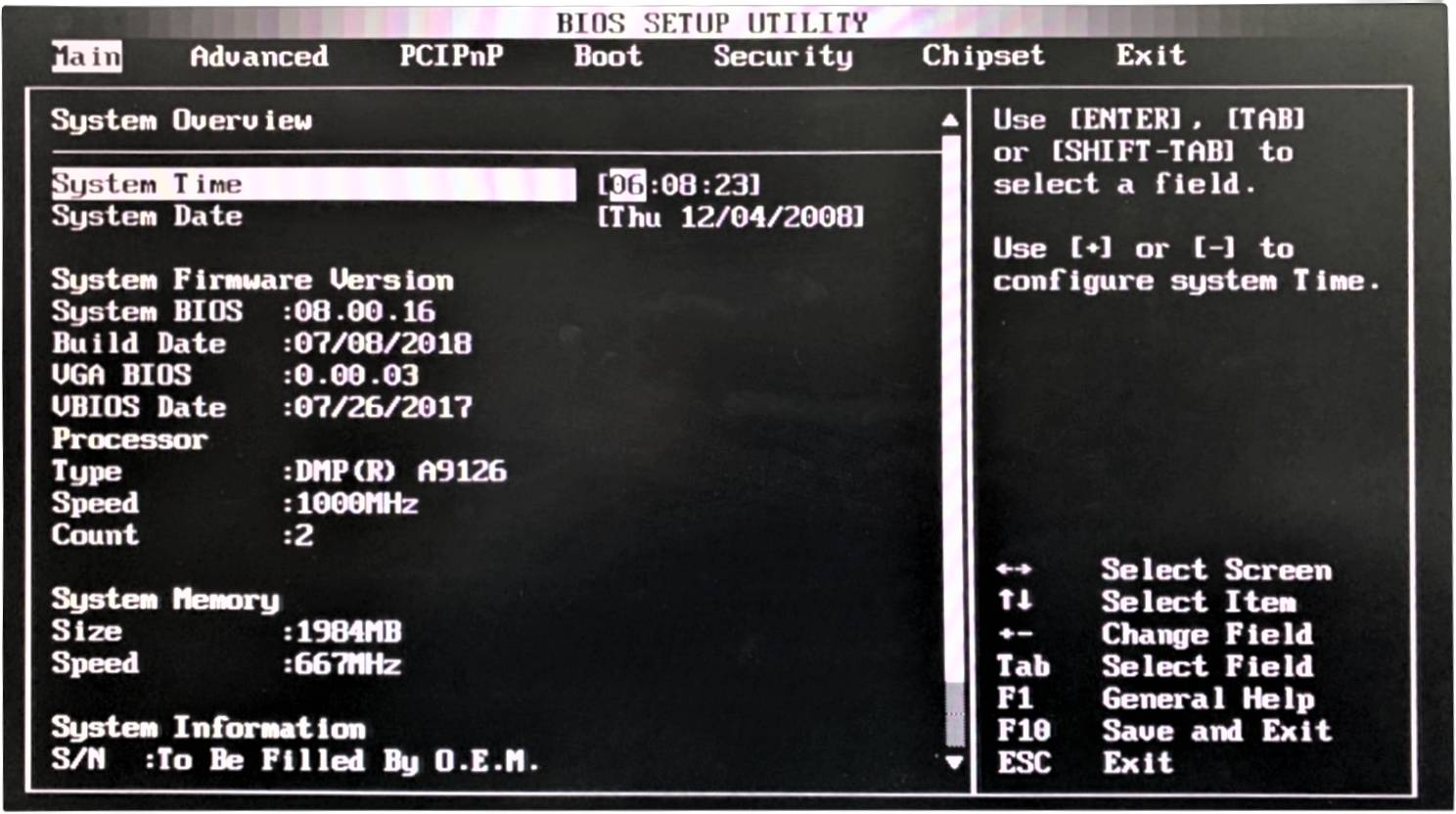

    wec7BiosVdx3_img1
  • Advanced ➔ IDE Configuration ➔ IDE Operate Mode ➔ Native Mode

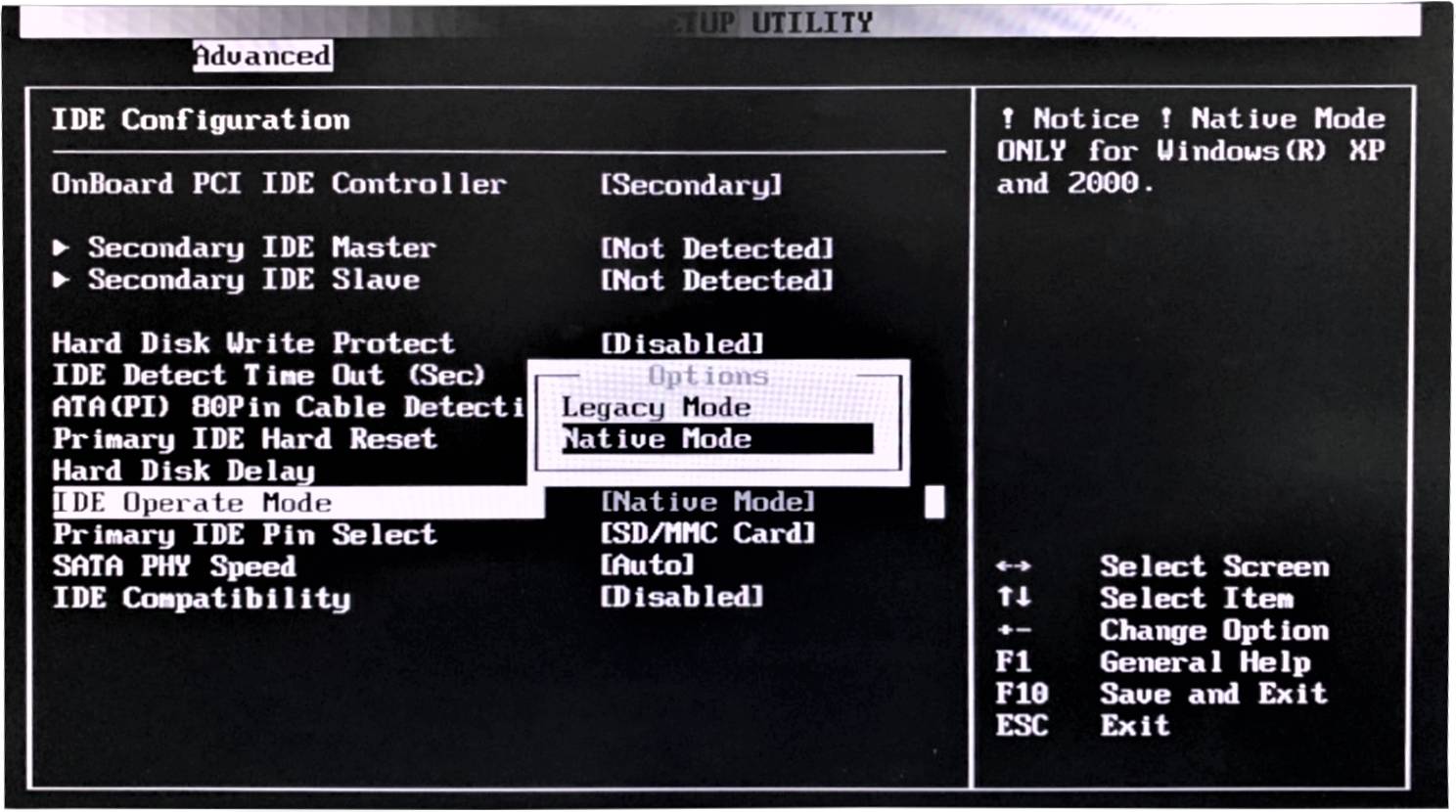

    wec7BiosVdx3_img2
  • Advanced ➔ Serial/Parallel Configuration ➔ SB Parallel Port ➔ Disabled

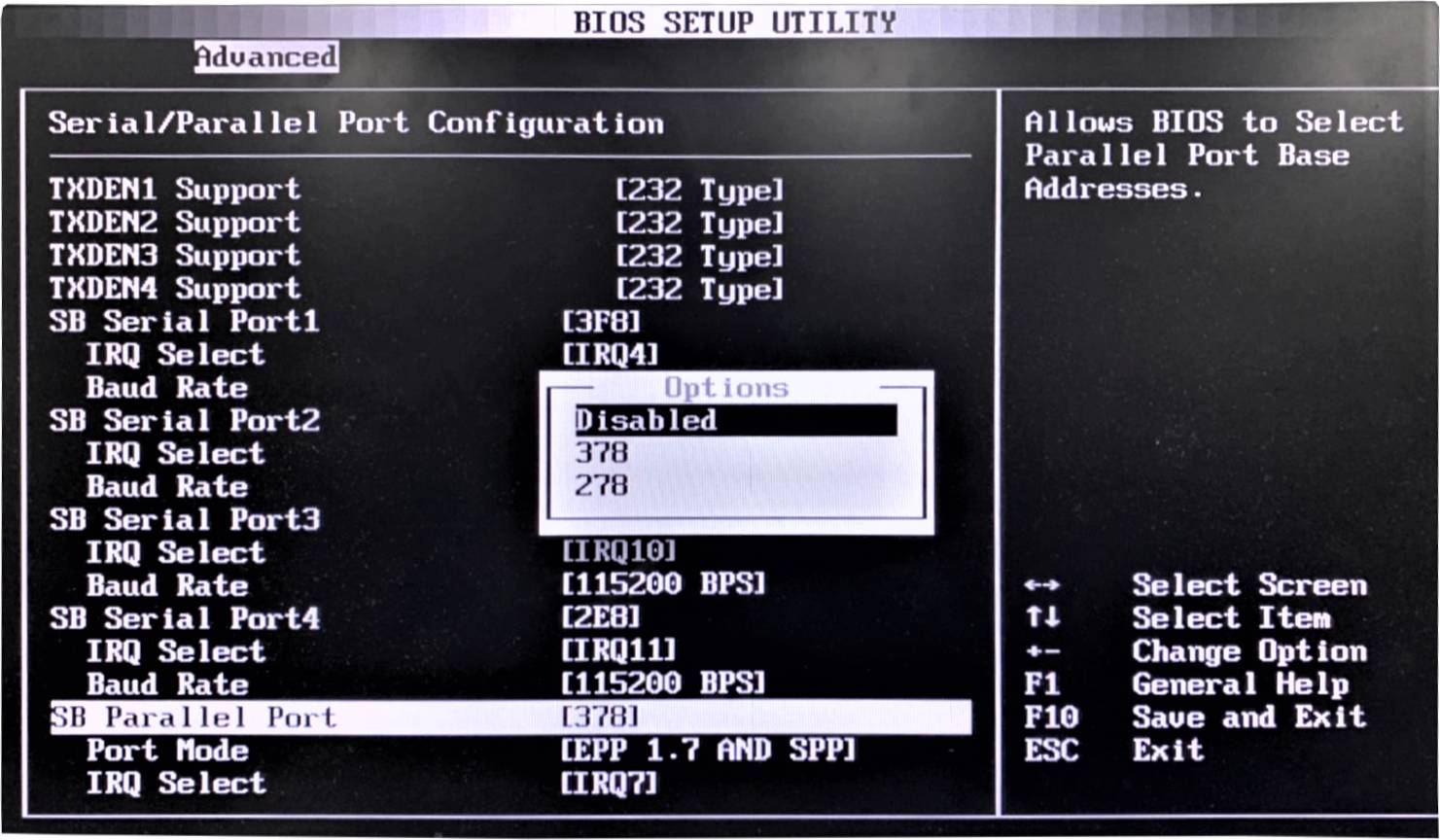

    wec7BiosVdx3_img3
  • Advanced ➔ USB Configuration ➔ Legacy USB Support ➔ Disabled

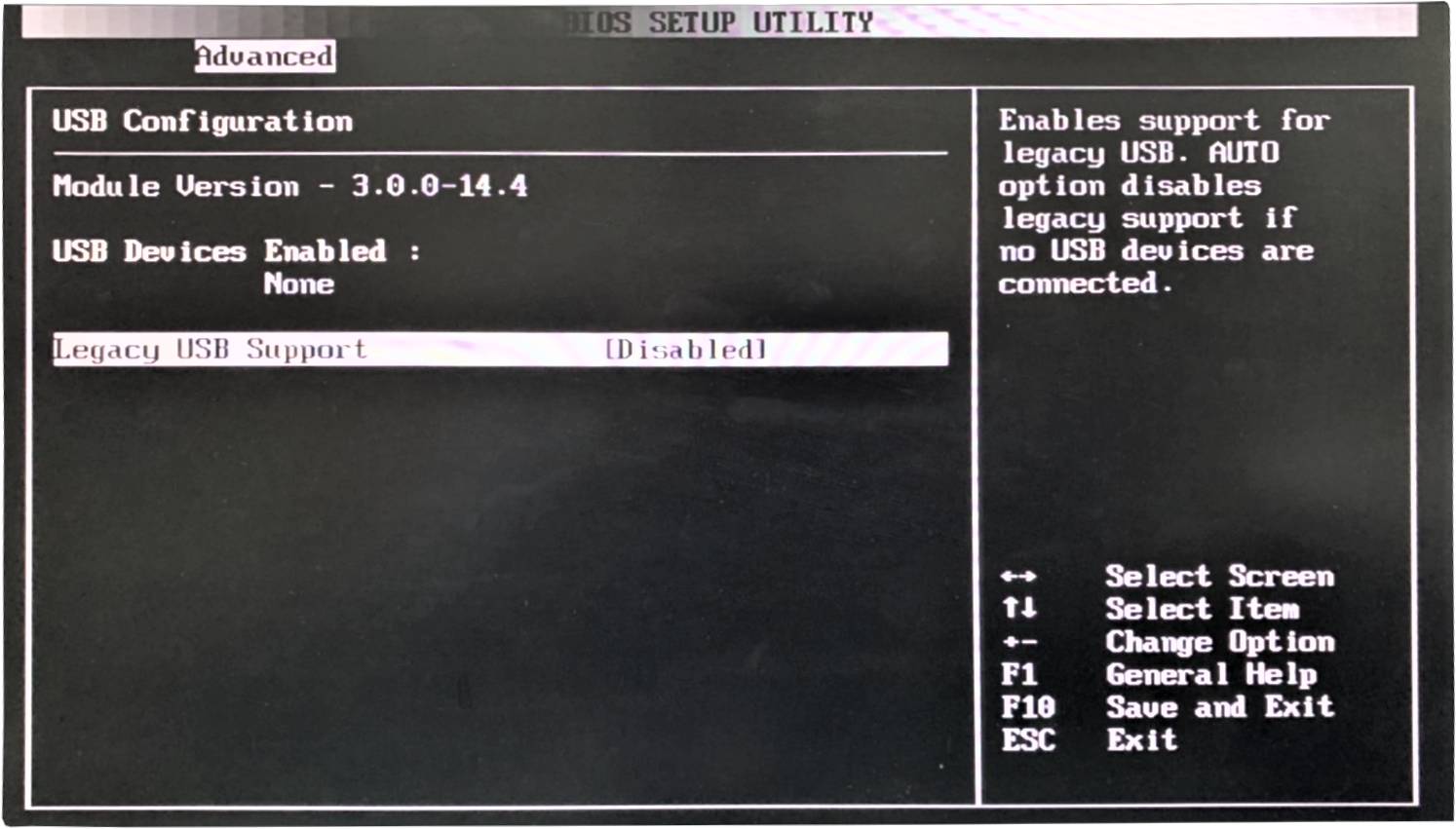

    wec7BiosVdx3_img4
    * If you need to use DOS, make sure to enabled Legacy USB Support

You can install Windows Embedded Compact 7 successfully after the above steps.


Main features of VDX3-6754:

  • DM&P SoC Vortex86DX3- 1GHz
  • 1GB / 2GB DDR3 onboard
  • 4S / 2U / VGA / LCD / LVDS / LAN / LPT / Audio / 16GPIO / SATA
  • Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)
