System On Module - SOM304DX2 - A Strong, Secure, Stable and Selectable Module

The design concept, computing performance level, features and supports about SOM304DX2 module.

[ Design Concept : Strong and Secure , Stable and Selectable ]

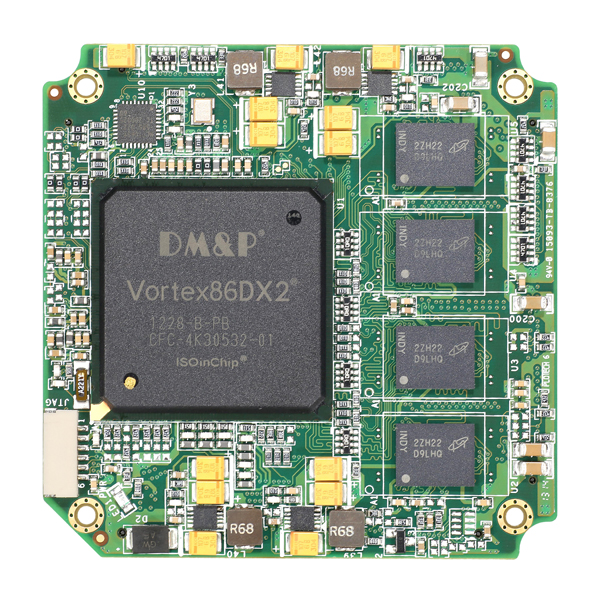

SOM304DX2 is a 70 x 70 x 10.5 mm 304 pins module with build-in Vortex86DX2 CPU and onboard 512MB/1GB DRAM. Its highly integrated design provides rich features including ISA, PCIe, RS-232, USB, GPIO, LAN, PWM, SATA, VGA/LCD, audio, Watchdog timer and etc. Power consumption is under 5W.







·  Strong and Secure

The SOM304DX2 is designed for industrial applications working in critical and harsh environments. Its surrounding metal shield not only provides solid protection to SOM304DX2, but also a good heat dissipation and EMI emission mitigation mechanism.

The high density underneath connector design let SOM304DX2 sit on carrier boards firmly and also provide high quality data communication between each other. Additional 4 screws at corners give customers worry free on falling apart concern.

·  Stable

SOM304DX2 adopts DMP's industrial grade Vortex86DX2 CPU with mature 90nm technology. By soldering all components on, including DDR2 RAM up to 1GB, SOM304DX2 provides customers ultimate data communication efficiency and interoperate stability for long-term usage in tough working environments.

·  Selectable

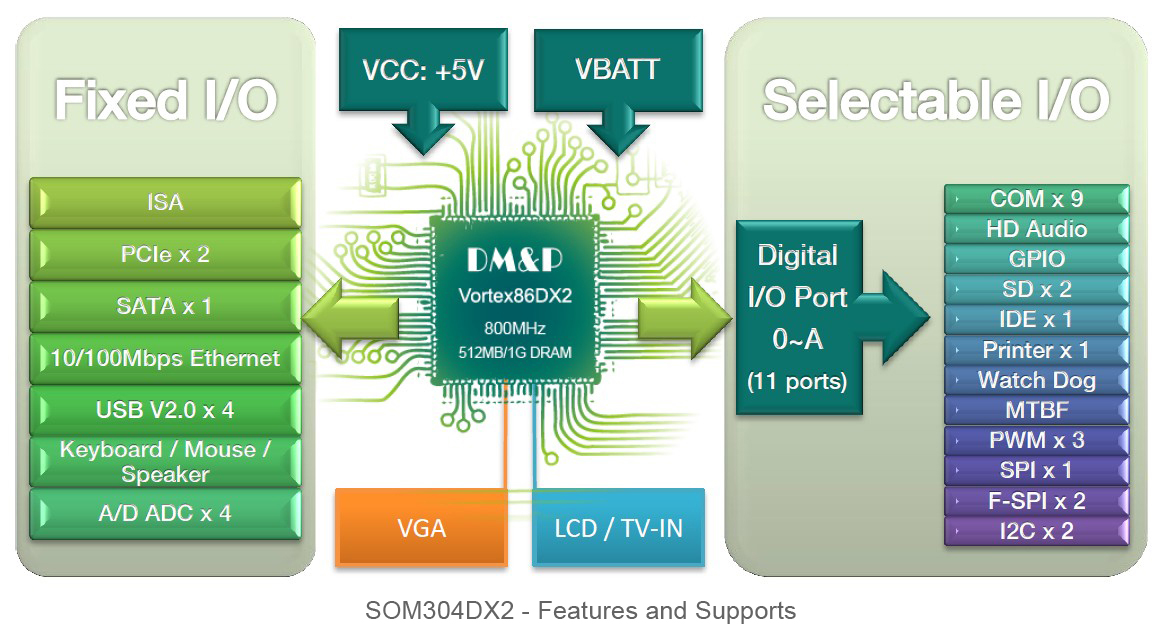

Except basic features on SOM304DX2, additional IO signals are available for customers’ selection.



[ Performance ]

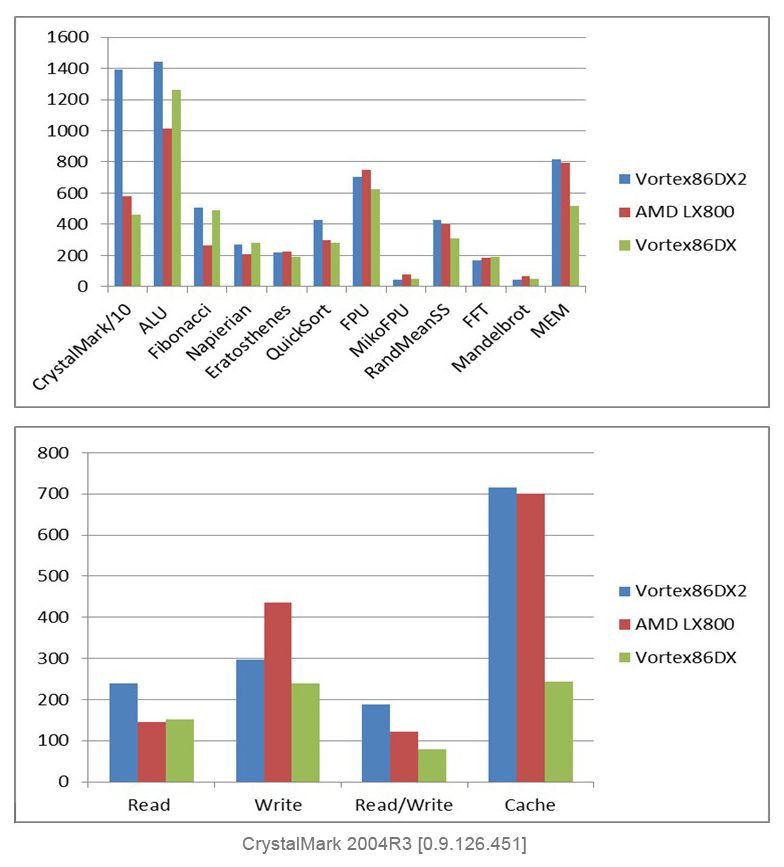

The benchmark comparison below is for your reference.
Testing Platform OS: Windows XP Professional

1. VDX2-6690A CPU model: Vortex86DX2 CPU clock: 800 MHz Memory: 504 MB

2. FX-LX (LX800) CPU model: AMD Geode LX CPU clock: 498.06 MHz Memory: 504 MB

3. VDX-6390 CPU model: Vortex86DX CPU clock: 1000 MHz Memory: 512MB

[ Features and Supports ]



·  OS Support

DOS, Windows CE, Windows Compact 7, Windows XP, Windows Embedded Standard 2009, Linux, VxWorks, QNX, etc.

·  Long-term Supply and Support

ICOP guarantees the availability of SOM304DX2 at least till year 2020. Exact the same form factor (pin to pin) alternative SOM will be provided if SOM304DX2 is not available due to any material supply in the future. Customers will also have chances to work with ICOP for longer supply of SOM304DX2 with special request.

Development Boards with design documents are available based on request.

Download the White Book : SOM304DX2-DesignConcept
