PPC-090T-EHL, powered by Intel® Elkhart Lake processor, merges Powerful Processing with Versatile I/O and Environmental Robustness

May 20, 2024

In the ever-evolving landscape of industrial technology, the demand for rugged and high-performance computing solutions is on the rise. ICOP Technology Inc. is proudly going to release a brand new Panel PC series, which offers a fanless design, low power consumption, and an IP65 front panel, PPC-EHL.


PPC-090T-EHL, with its powerful Intel Elkhart Lake processor and versatile connectivity options, is the perfect choice for demanding industrial applications

The PPC-090T-EHL features an Intel® Elkhart Lake J6414 SoC Processor and offers flexible memory configurations with 8GB, 16GB, or 32GB SO-DIMM DDR4 modules. This combination ensures efficient processing and delivers enhanced performance. It's well-suited for diverse environments with a versatile 12~24V power adapter and an operational temperature range of 0 to +60°C.

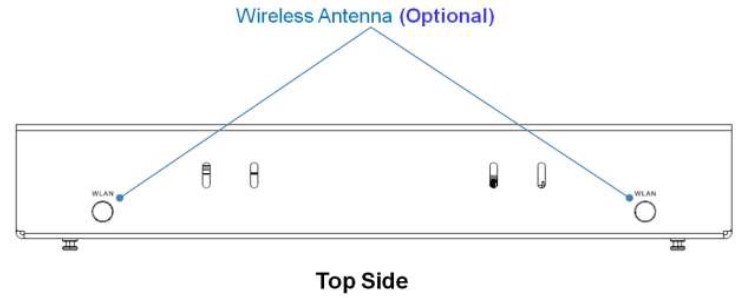

PPC-090T-EHL-functions-t PPC-090T-EHL-functions

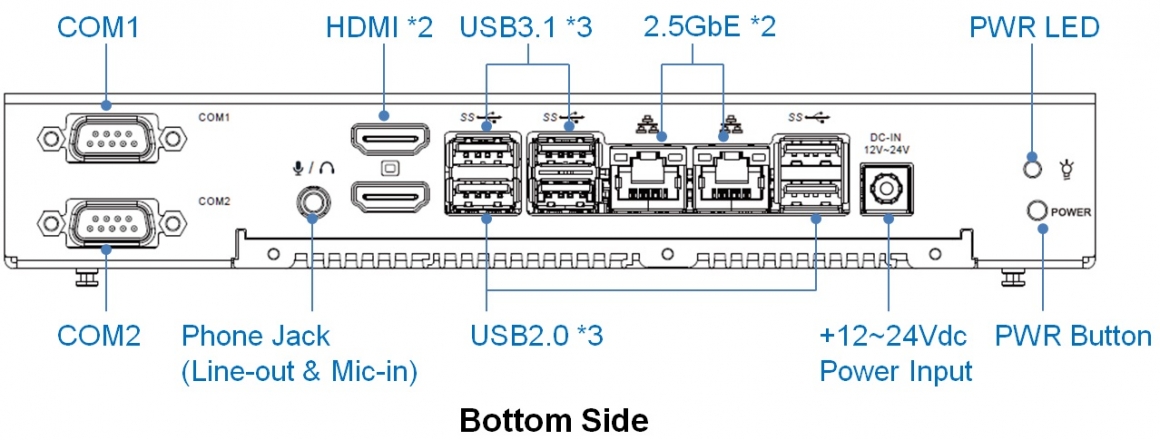

The PPC-090T-EHL includes versatile functions, including 2 serial ports (RS232/422/485), up to 6 USB, 2 HDMI ports for additional displays, 2.5 GbE high-speed Ethernet, audio, and M.2 slots (M-Key, B-Key, E-Key) for expansion options. These ports allow seamless integration into various industrial setups, ensuring compatibility with your existing infrastructure.
NOTE: COM1 RS232/422/485 is selected by BIOS setting.

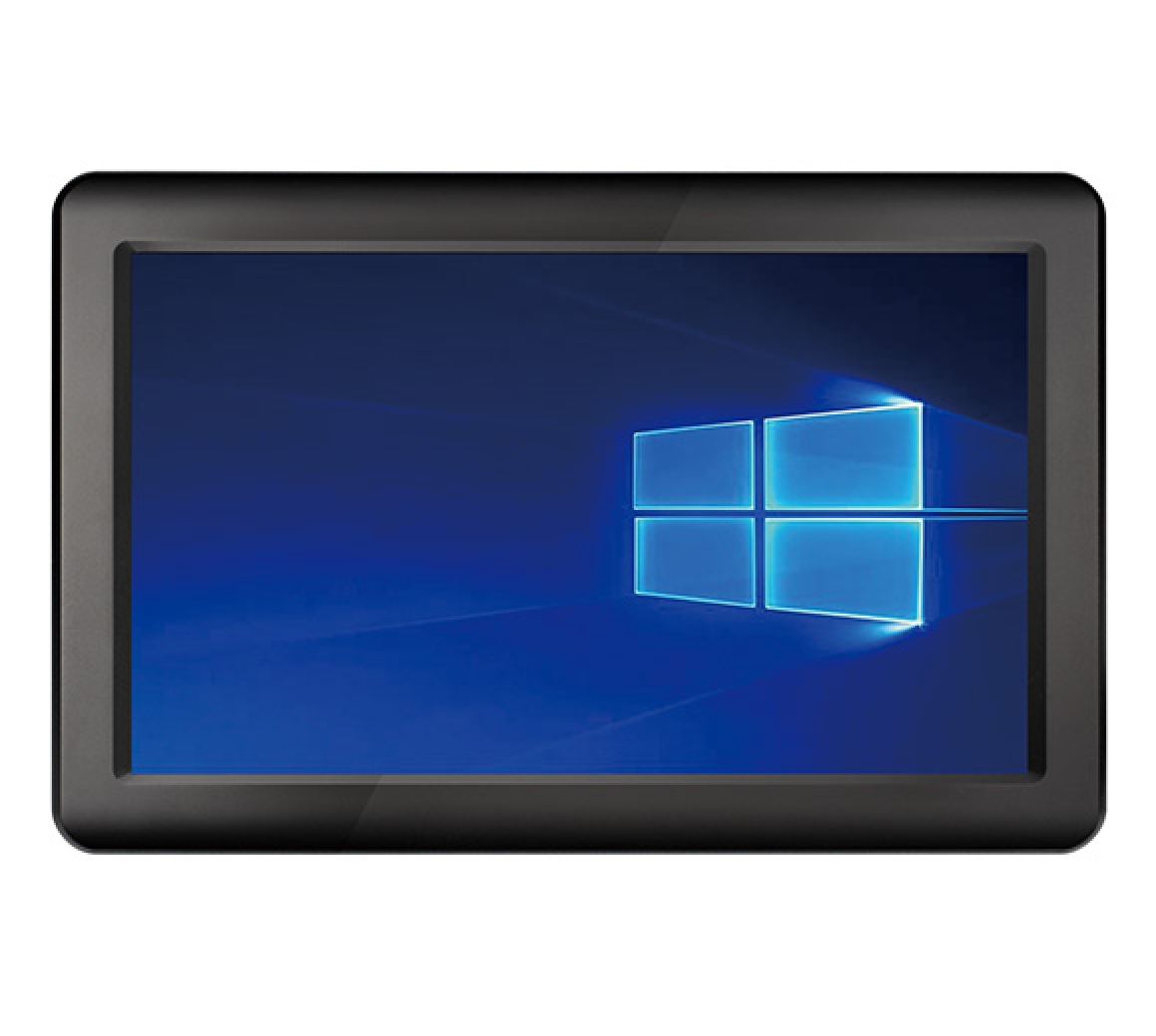

The new PPC-090T-EHL inherited the PPC series' smooth appearance and ultra-texture aluminum exterior design to make your industrial applications look more stylish. It features a 9-inch TFT LCD display with a resolution of 1024x600 and uses a resistive touchscreen for user interaction. The project capacity touch panel with LED backlight TFT LCD increases operation convenience and visibility in outdoor environments. The ultra-compact and thin exterior design is perfect for the present demanding embedded and productive applications.
Our consistent advantages feature stable performance, extended working temperature support, low power consumption, and fanless design.

Operating System Compatibility

To cater to diverse needs, the PPC-090T-EHL supports a range of operating systems, including Windows 10, Windows 10 IoT, Windows 11, and Linux. This ensures you can choose the operating system that best aligns with your project requirements and preferences.

IP65 Front Panel: Built to Withstand

Industrial settings are known for their challenging conditions, where dust and water resistance are essential. The PPC-090T-EHL comes equipped with an IP65-rated front panel, offering protection against dust and water. This feature ensures that your Panel PC can withstand the harshest of environments, whether it's a factory floor or an outdoor installation.


Main Features of PPC-090T-EHL:

  • Intel® Elkhart Lake J6412 SoC Processor (Quad Core 2.0GHz)
  • 8GB / 16GB / 32GB SO-DIMM DDR4
  • 2S/6U/2HDMI/2 2.5GLAN/Audio/M.2/12~24V Power Adapter
  • Operation Temperature: 0 ~ +60°C
  • 9" TFT 1024x600 Resolution LCD with Resistive or Capacitive touch screen
  • 2 external HDMI as second and third display
  • M.2 B-key (3024) USB3.1/USB2.0 interface
  • M.2 E-key (2230) USB2.0/PCIe Gen3 *1 interface
  • Intel® i225-V 2.5GbE x2

In conclusion, the PPC-090T-EHL Panel PC from ICOP Technology Inc. has a fanless design, low power consumption, IP65-rated front panel, and robust performance capabilities, making it an ideal choice for various applications. Whether you're in automation, manufacturing, or any other industrial sector, this Panel PC is designed to meet your computing needs with excellence.
