DM&P SoC Vortex86DX3- 1GHz

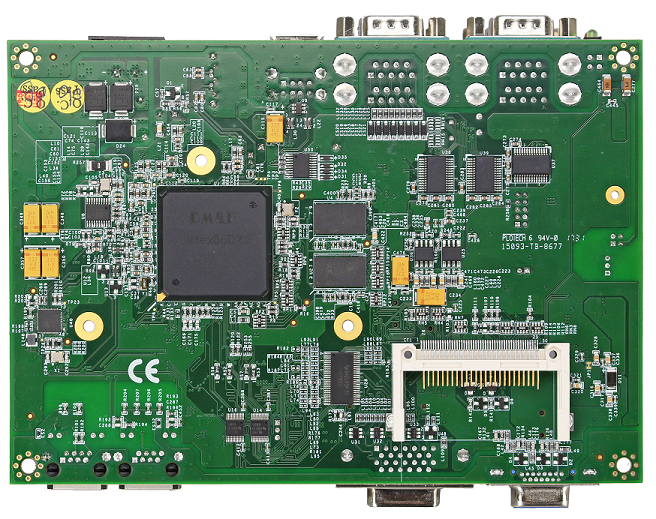

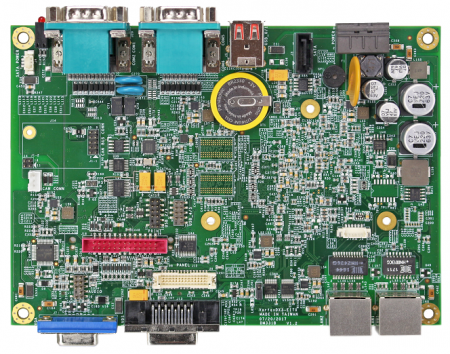

VDX3-EITX

3S/6U/VGA/LVDS/GLAN/LAN/AUDIO/CF

  • x86/Vortex86DX3 1GHz
  • 1GB
  • 2GB
  • RS-232
  • RS-485
  • USB
  • GLAN
  • LAN
  • Audio
  • VGA
  • LVDS

Specifications

  • DM&P SoC Vortex86DX3- 1GHz

  • 1GB / 2GB DDR3 onboard

  • 3S/6U/VGA/LVDS/LAN/GbE/AUDIO/CF

  • Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)

  • Optional: CAN Bus

Manual

Datasheet

Technical Resource

CPU DM&P SoC CPU Vortex86DX3 - 1GHz
L1:32K I-Cache, 32K D-Cache
L2 Cache:512KB
RAM 1GB/2GB DDR3 Onboard
BIOS AMI BIOS
Display Integrated 2D VGA chip with dual display support (VGA + LVDS )
VGA: Maximum resolution up to 1920x1080 @ 60Hz
LVDS: Maximum resolution up to 1024x768 @ 60Hz
Single-channel 24-bit LVDS
LAN Integrated 10/100Mbps Ethernet x1
Realtek 8111F 10/100/1000Mbps Ethernet
I/O Interface RS232 x3
RS485 x1
USB x6
CAN x1 (Optional)
Audio x1
DIO x1
Connectors 1.25mm 30-pin wafer for LCD Panel x1
2.0mm 10-pin header for USB x1
2.0mm 4-pin header for CAN Bus module x1
2.0mm 10-pin header for CAN Bus module x1
2.0mm 10-pin header for Audio x1
2.0mm 26-pin box header for DIO x1
2.54mm 3-pin box header for CAN Bus x1
26-pin SCSI II D-type female connector for LVDS x1
D-Sub 9-pin male connector for RS485 x1
D-Sub 15-pin female connector for VGA x1
SATA 7P for SATA x1
USB connector x2
RS45 connector x2
Compact Flash slot x1
Power terminal block x1
Power Requirement +12 to +24V
Operating Temp. -20°C to +70°C
O/S Support Windows 7
Windows Embedded Standard 7
Windows Embedded Compact 7
Windows Embedded CE6.0
Windows XP Professional
Windows Embedded 2009
Linux
DOS
POS Ready (WePOS)
QNX
VxWorks
Free BSD
Dimensions 170mm x 120mm
Weight 210g
PART NO. CPU
(MHz)
DRAM
(DDR3)
Storage Display LAN Giga LAN USB
(Ver. 2.0)
RS232 RS485 CAN
(Optional)
DIO Audio
VDX3-EITX-7S4E1 1GHz 1GB SATA
Compact Flash
VGA LVDS 1 1 6 3 1 1 1 MIC-In
Line-Out
VDX3-EITX-7S5E1 1GHz 2GB SATA
Compact Flash
VGA
LVDS
1 1 6 3 1 1 1 MIC-In
Line-Out

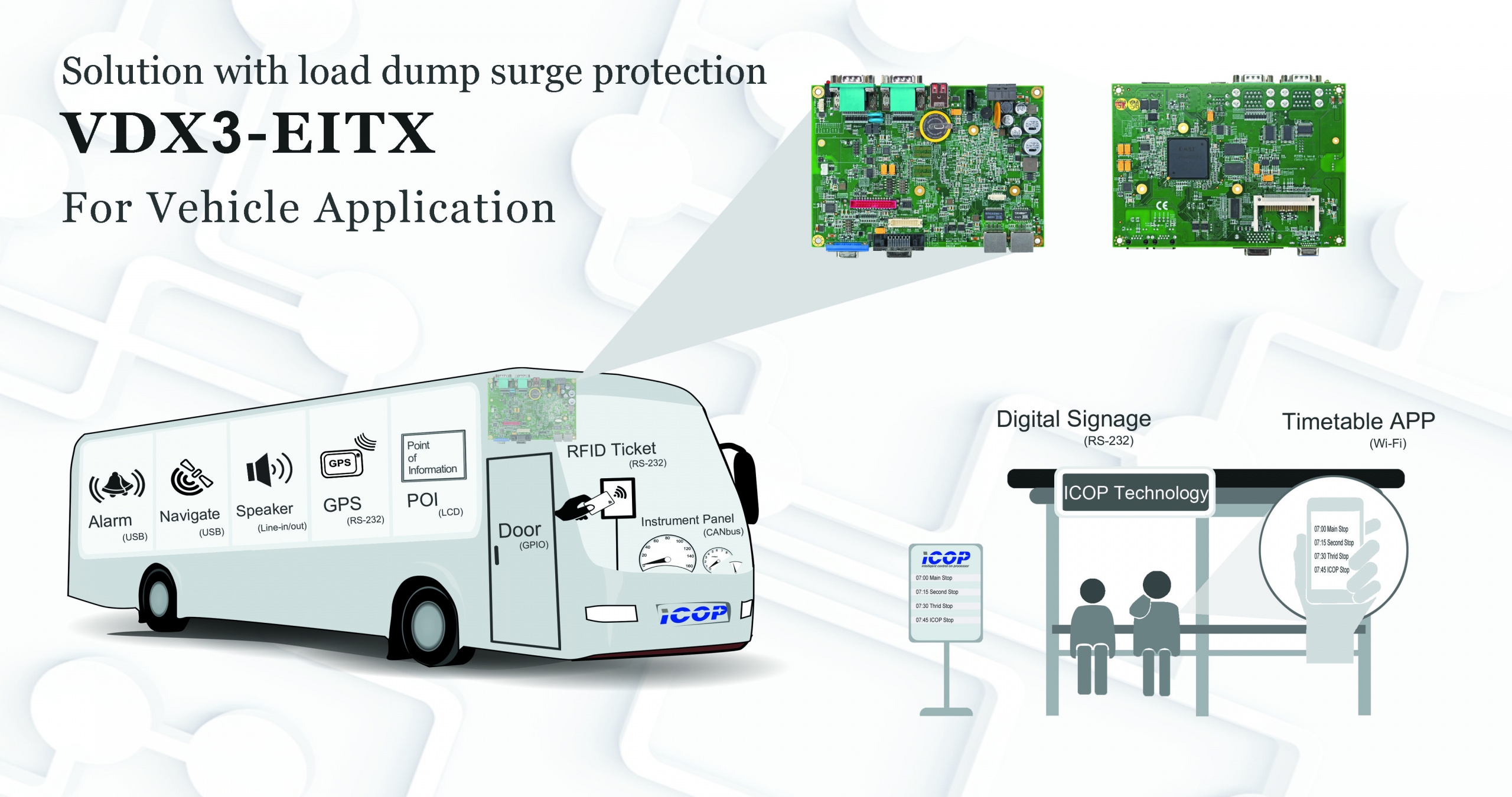

Designed with load dump protection circuit, VDX3-EITX is protected from large voltage spikes effect and passed ISO7637-2 and ISO16750-2 tests (standard tests for passenger and commercial vehicle usage).

The VDX3-EITX from ICOP features DM&P SoC Vortex86DX3 1GHz processor, supporting onboard 2GB DDR3 memory plus SATA DoM and Compact Flash as default storage. The industrial I/O of VDX3-EITX features LAN, Giga LAN, VGA, 24-bit LVDS, 3x RS232, RS485, 6x USB, CAN Bus, Audio, and DIO. The VDX3-EITX operates in a range of -40°C to +85°C and supports +12 to +24VDC input.

This feature-rich VDX3-EITX is not only configured for in-vehicle usage, but also for industrial automation, automotive controller, intelligent vehicle management device, data acquisition, robotics, and machine control, etc.

Recommended operating systems on the VDX3-EITX are Windows 7 (or previous version of Windows systems), Windows real-time operating system, Ubuntu, Debian, VxWorks, and QNX.

The features at a glance:



  • Vortex86DX3 1GHz processor (Dual-core available)
  • 2GB DDR3 system memory onboard
  • ISO7637-2 and ISO16750-2 tests passed
  • Giga LAN, LAN, VGA, 24-bit LVDS, 3x RS232, RS485, 6x USB, CAN Bus, Audio, and DIO
  • EtherCAT support (Demo image available)
  • -40°C to +85°C support
  • +12 to +24VDC input support
  • Demo image of operating systems available for verification
