Specifications
IP67 rated
Support PC/104 form factor
Active-warming design enclosure
Customizable I/O ports configuration services
Company’s logo engraving services
Enhances the reliability of your systems in -60℃~+80℃ environment(Optional -100℃~+80℃)
Ready to ship in 7 business days
Specification:
| Material | Aluminum |

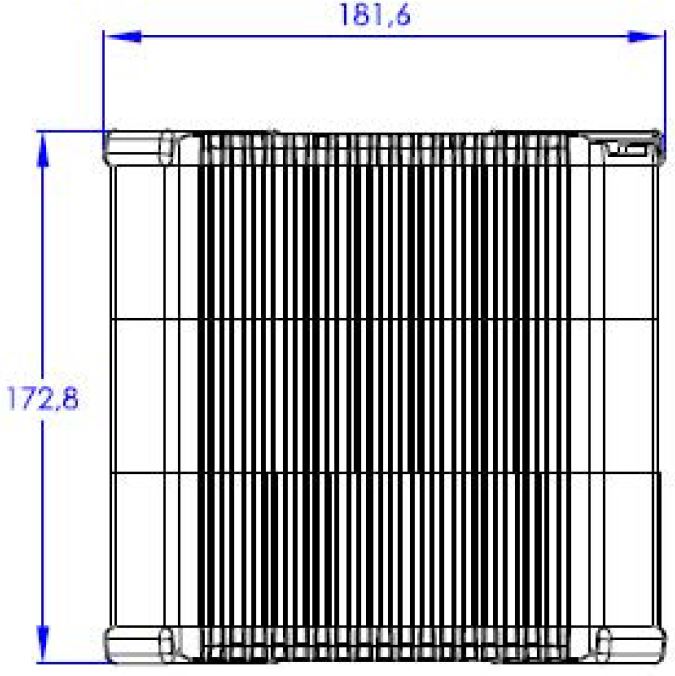

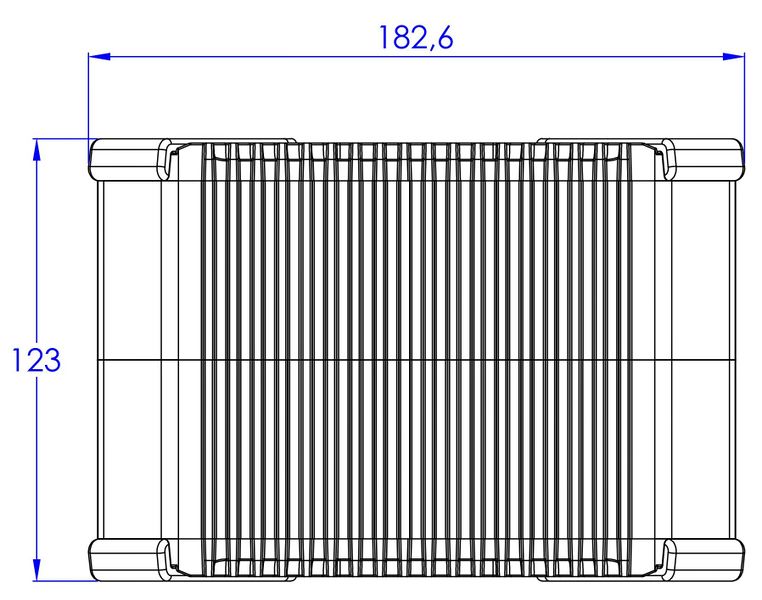

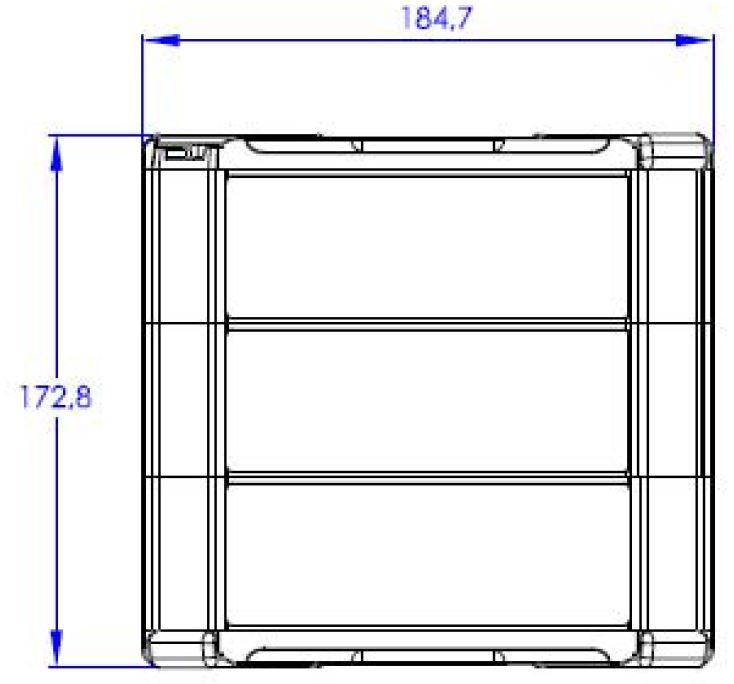

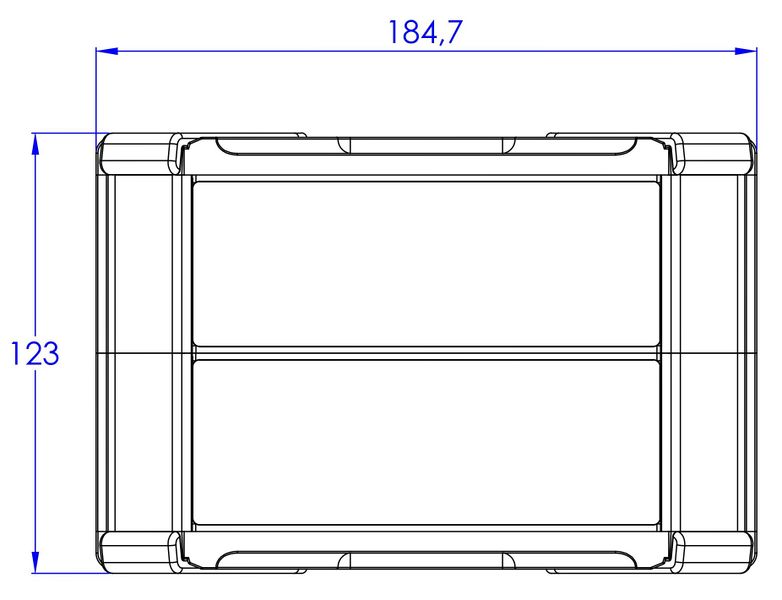

| Dimension | 7.2” x 7.3” x 2.2” (181.6mm x 184.7mm x 56.6mm) 7.2" x 7.3" x 4.8" (181.6mm x 184.7mm x 123mm) 7.2” x 7.3” x 6.8” (181.6mm x 184.7mm x 172.8mm) |
| Power Supply | AC-DC PC/104 Power Module / Single +5V DC input |
| Certificate | IP65 / IP67 (Option) |
| Operating Temperature | -100°C to +85°C |

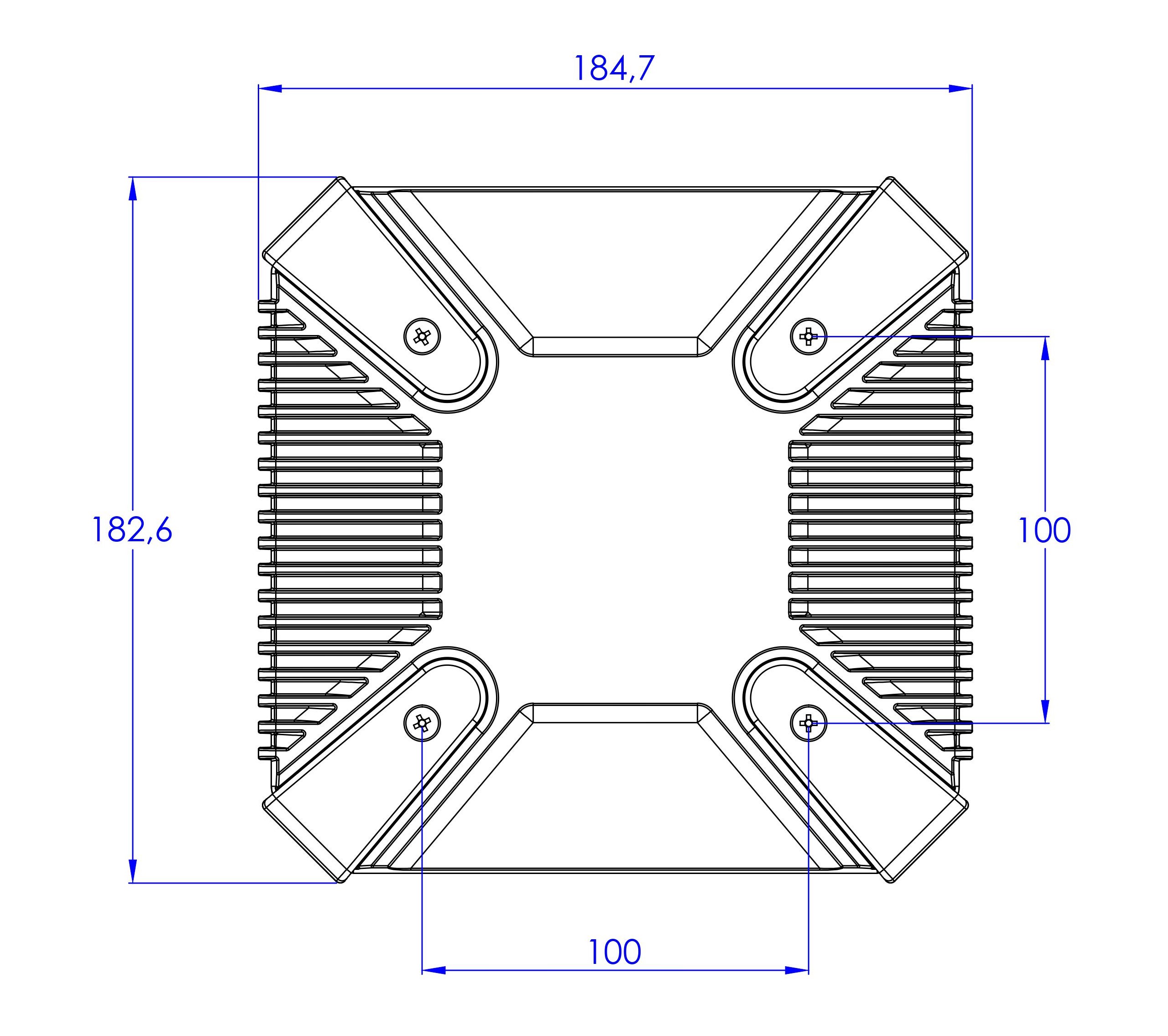

Chassis Dimension:

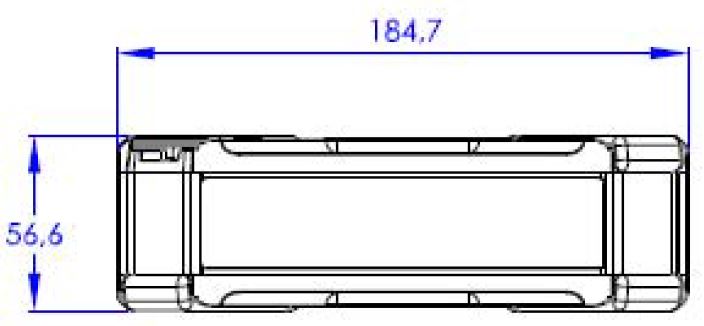

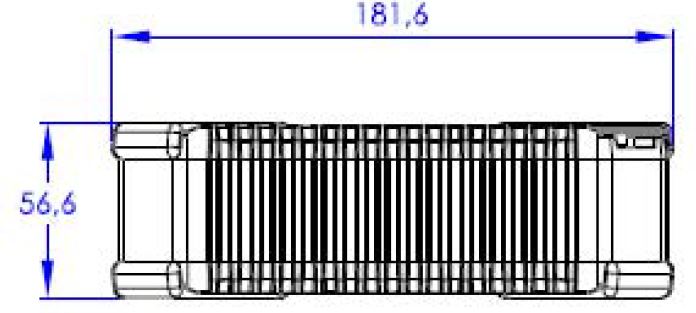

Dimension: 7.2” x 7.3” x 2.2” (181.6mm x 184.7mm x 56.6mm)

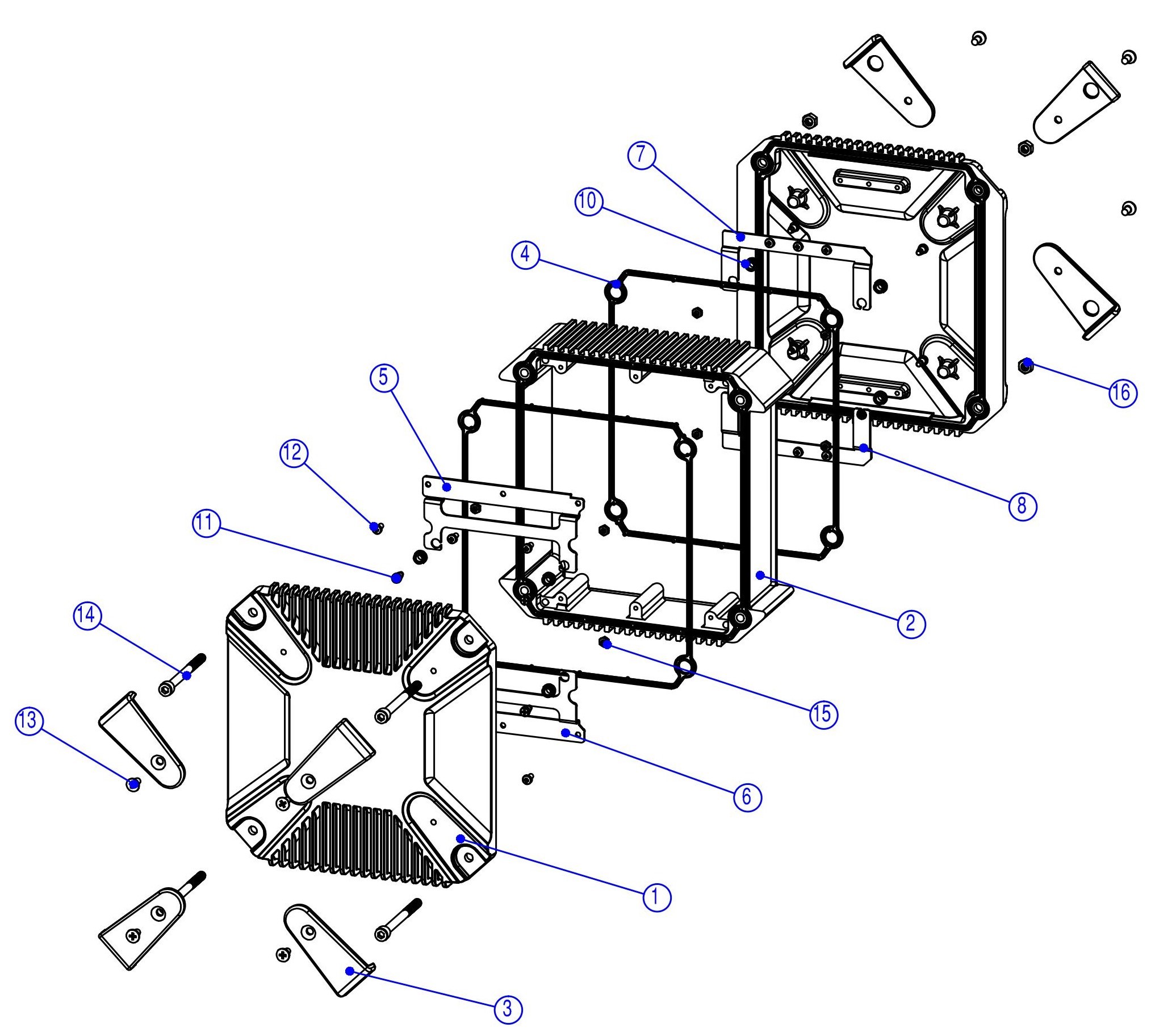

| No. | Name | Part Number | Description | Qty. |
|---|---|---|---|---|
| 1 | Cover | Case-ICE-Cover | ICE Cover Case | 2 |
| 2 | Frame_Case | Case-ICE-Frame-3L | ICE Frame Case 3U (49.8mm) | 1 |
| 3 | Shockproof_Rubber | Silicon-ICE-Shock-1 | Shockproof Rubber | 8 |
| 4 | Waterproof_Rubber | Silicon-ICE-WP-1 | Waterproof Rubber | 2 |
| 5 | Left_Bracket | Case-ICE-PC104-L-BR | PC/104 Module Left Bracket | 1 |
| 6 | Right_Bracket | Case-ICE-PC104-R-BR | PC/104 Module Right Bracket | 1 |
| 7 | Left_Bracket_PW | Case-ICE-PW-L-BR | PC/104 Power Module Left Bracket | 1 |
| 8 | Right_Bracket_PW | Case-ICE-PW-R-BR | PC/104 Power Module Right Bracket | 1 |
| 10 | Anti-Vibrate_Gromment | Silicon-ICE-Vibrate-1 | Anti-Vibrate Grommet | 8 |
| 11 | Anti-Vibrate_Gromment-Screw | Screw-ICE-VIbrate-1 | Anti-Vibrate Grommet Screw | 8 |
| 12 | Round Head Screws | Screw-ICE-R3 | M3 x 0.5-L6 | 12 |
| 13 | Flat Head Screws | Screw-ICE-FLM4-SL | M4 x 0.7-L12 | 8 |
| 14 | Hexagon Screw | Screw-ICE-HEXM5-SL-2 | M5 x 0.8-L60 | 4 |
| 15 | Nut | Screw-ICE-Nut-M3 | JIS B 1811 Hexagon nut Class 2 Finished M3-S |
8 |
| 16 | Nut | Screw-ICE-Nut-M5-SL | JIS B 1811 Hexagon nut Class 2 Finished M5-S |
4 |
ICE Series is a lightweight, rugged enclosure purposely designed for PC/104, and a system can be used in an environment where wide temperature or drastic shock presents. This unique enclosure system is the first of its kind that provides the ICE(Industrial Custom Enclosure) demand, which makes it a truly flexible, easy design. Delivering the industry’s highest PC/104 system serviceability level, the ICE Series greatly simplifies field retrofits, reconfigurations, and upgrades.
ICOP can custom made the I/O panel according to the customer’s application within a concise period of time and with no minimum orders. ICE provides a compact, lightweight, and flexible enclosure system by using our fanless CPU module. In the ICOP concept, customer can construct their PC/104stack and attach cables within an aluminum box. The ICE Series can be easily expanded to add additional segments. The housing with a water-tight seal, it can meet up to IP65 specification. Furthermore, the vibration isolator will protect the PC/104 module assembles. Design your next embedded system with the new ICE Series. The ICE Series also provides a very high degree of protection against damaging shock and vibration energies common to mobile, airborne, shipboard, and other demanding embedded PC/104 environments. The ICE Series will be the next generation of the enclosure embedded system.
For more info and sample request, please write to info@icop.com.tw, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
